Eaton 000645

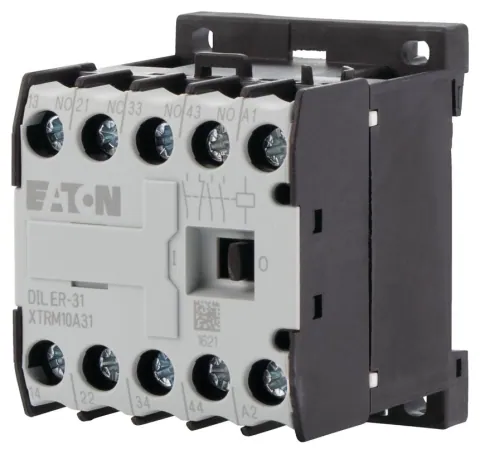

The DILER Contactor Relay, designated as DILER-31(TVC200), is designed for AC operations with a rated control supply voltage of 200 V at 50 Hz and 200 - 220 V at 60 Hz. It comprises 3 normally open contacts and 1 normally closed contact, facilitating versatile control functionalities.

This device is tailored for reliable performance in various applications, with a mechanical lifespan of up to 10,000,000 operations when AC operated. It features positive operating contacts in accordance with EN 60947-5-1, ensuring adherence to stringent operational standards.

The relay's ambient operating temperature ranges from -25 °C to 50 °C, accommodating diverse environmental conditions. Its compact dimensions of 52 mm in depth, 58 mm in height, and 45 mm in width contribute to efficient installation within control panels.

Furthermore, the relay supports a rated operational current of 10 A and is equipped with screw terminals for secure connections. The device's protection class is IP20, ensuring adequate safety in typical industrial settings.
