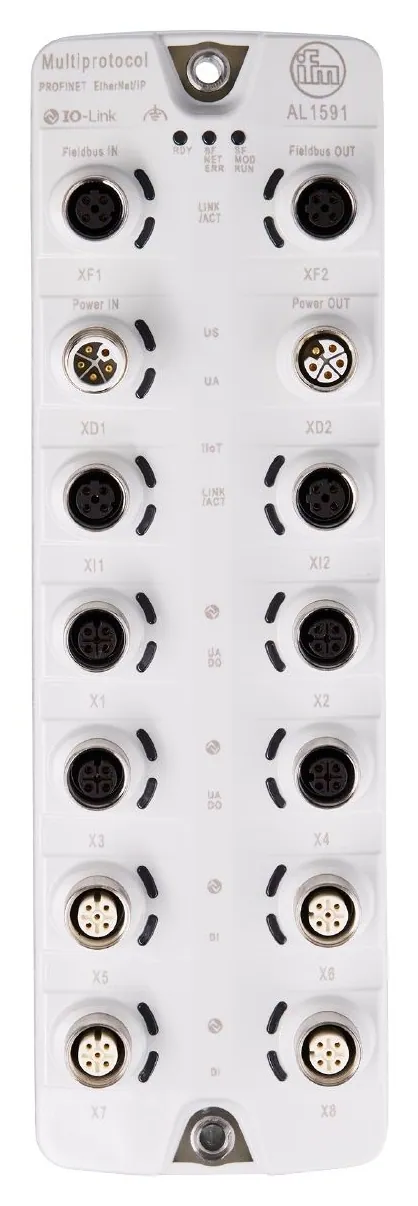

IFM AL1591

The IO-Link Master SOL MP 8P IP69k facilitates the connection of up to eight IO-Link devices, allowing for efficient data communication within industrial applications. It features an integrated IODD interpreter that translates sensor data into accessible information, enhancing usability in complex environments.

Designed for flexibility, this master supports multiprotocol fieldbus communication with PROFINET and EtherNet/IP, making it adaptable for various controller setups. Data transfer to on-premises IT systems is streamlined through OPC UA, ensuring interoperability across platforms.

Operating within a temperature range of -25 to 60 degrees Celsius, the device is suitable for hygienic systems and field applications. It is built to withstand harsh conditions, exhibiting a protection rating of IP 69K and complying with NEMA 250 standards for dust and water ingress.

For configuration and parameter settings, the device utilizes a Node-RED environment and operates on an embedded Linux system. It is equipped with 16 configurable digital inputs and outputs, which include 12 digital inputs and 12 digital outputs, each with specific switching levels and short-circuit proof capabilities.

Additionally, this master features secure communication protocols, including HTTPS and MQTTS, while supporting various network topologies such as line and ring configurations. The device is also designed to endure mechanical stress, with a weight of approximately 649.55 grams and dimensions of 238 x...
