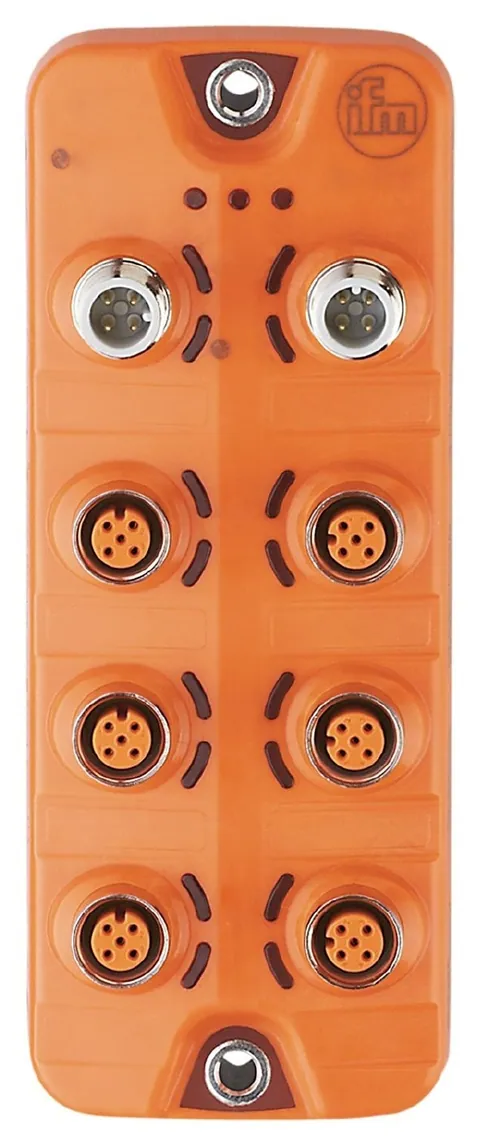

IFM AL2336

The IO-Link CompactLine module, designated as IOL MOD SL 6XDO/DO E D M12 IP67, is designed to facilitate the control of actuators via six ports, each providing two binary outputs. This configuration allows for the management of up to twelve actuators efficiently.

It operates using two distinct voltage supplies, each rated for up to 1.8 A, ensuring reliable performance in various applications, including safety circuits. The module supports both data and energy transmission through unscreened connection cables, enhancing flexibility in installation.

Electrical parameters include a standard operating voltage range of 18 to 30 V DC, with a total output capacity of 3.6 A across all outputs, allowing a maximum current load of 1800 mA per individual output. The communication interface adheres to the IO-Link protocol, supporting device IDs and providing diagnostics capabilities.

With an ambient operating temperature range from -25°C to 60°C and a storage temperature capability of up to 70°C, this module is suitable for diverse environmental conditions. It boasts a protection rating of IP 67, ensuring durability against dust and water ingress. The housing is constructed from PA material, with brass nickel-plated sockets, reinforcing the module's robustness.

Optional accessories include protective caps for M12 connectors, which enhance protection and reliability. For detailed information regarding functional safety, refer to the operating instructions supplement available under the...
