Mitsubishi HF-SP102B

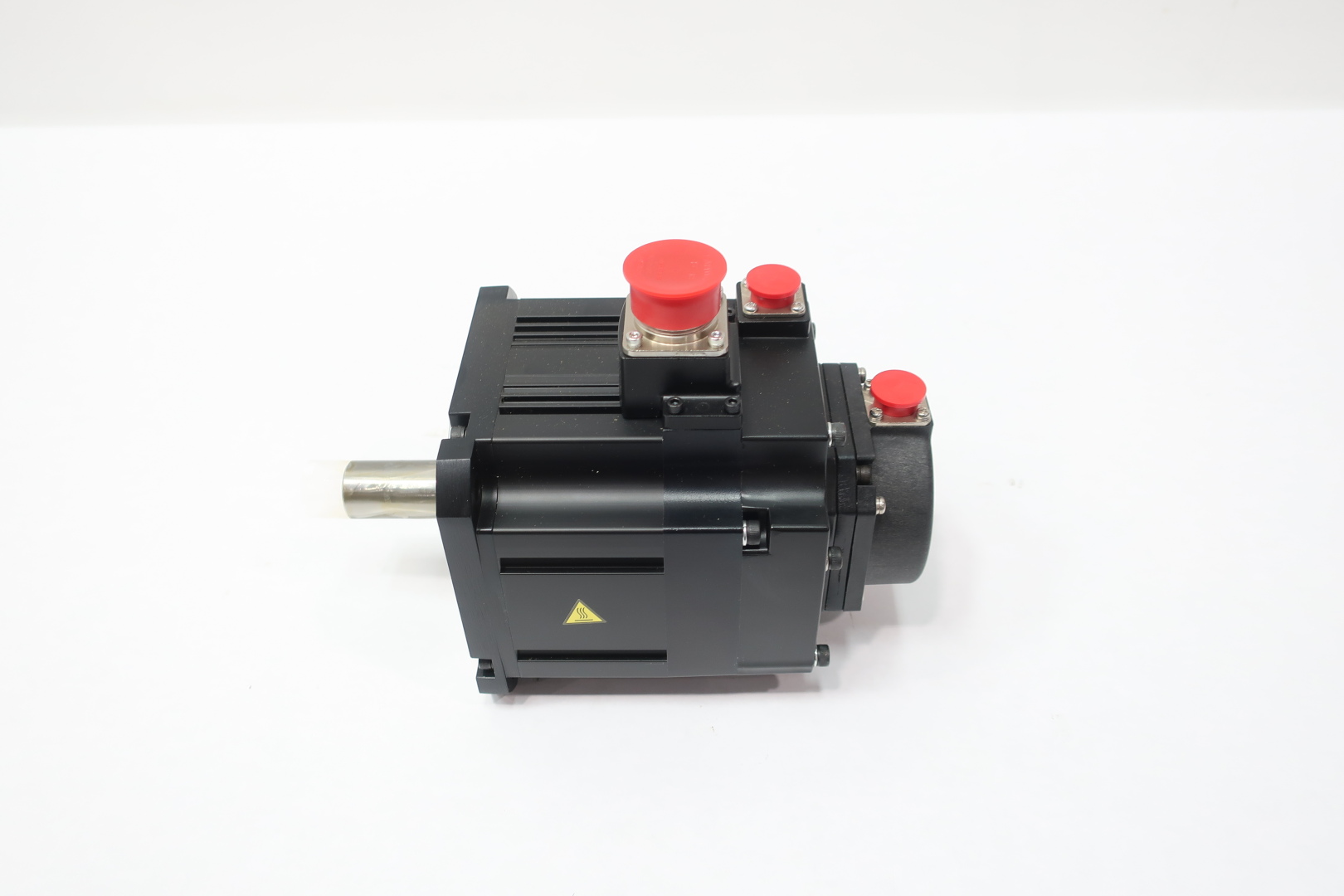

The Mitsubishi HF-SP102B AC Brushless Rotary Servo Motor from the MELSERVO J3 series is designed for high precision and reliability in industrial automation applications. With a rated output of 1000W (1kW) and a rated current of 5.3A, this servo motor delivers robust performance for demanding tasks. It features a straight shaft, built-in electromagnetic brake, and an 18-bit absolute feedback encoder, ensuring precise control and positioning.

This servo motor operates at a rated rotational speed of 2000rpm, with a maximum speed of 3000rpm, and provides a nominal torque of 4.77Nm. The motor's medium inertia and medium power capacity make it suitable for a variety of applications, including material handling systems, robots, and x-y tables. The HF-SP102B is built to withstand harsh environments, with an IP67 protection rating and an operational temperature range of 0 to +40°C.

Installation is straightforward with a 130x130mm flange mounting, and the motor's compact dimensions (H177.5mm x W130mm x D230mm) allow for easy integration into existing systems. The HF-SP102B is a reliable choice for engineers and integrators seeking a high-performance servo motor for precision automation tasks.
