Panduit

T25F-C

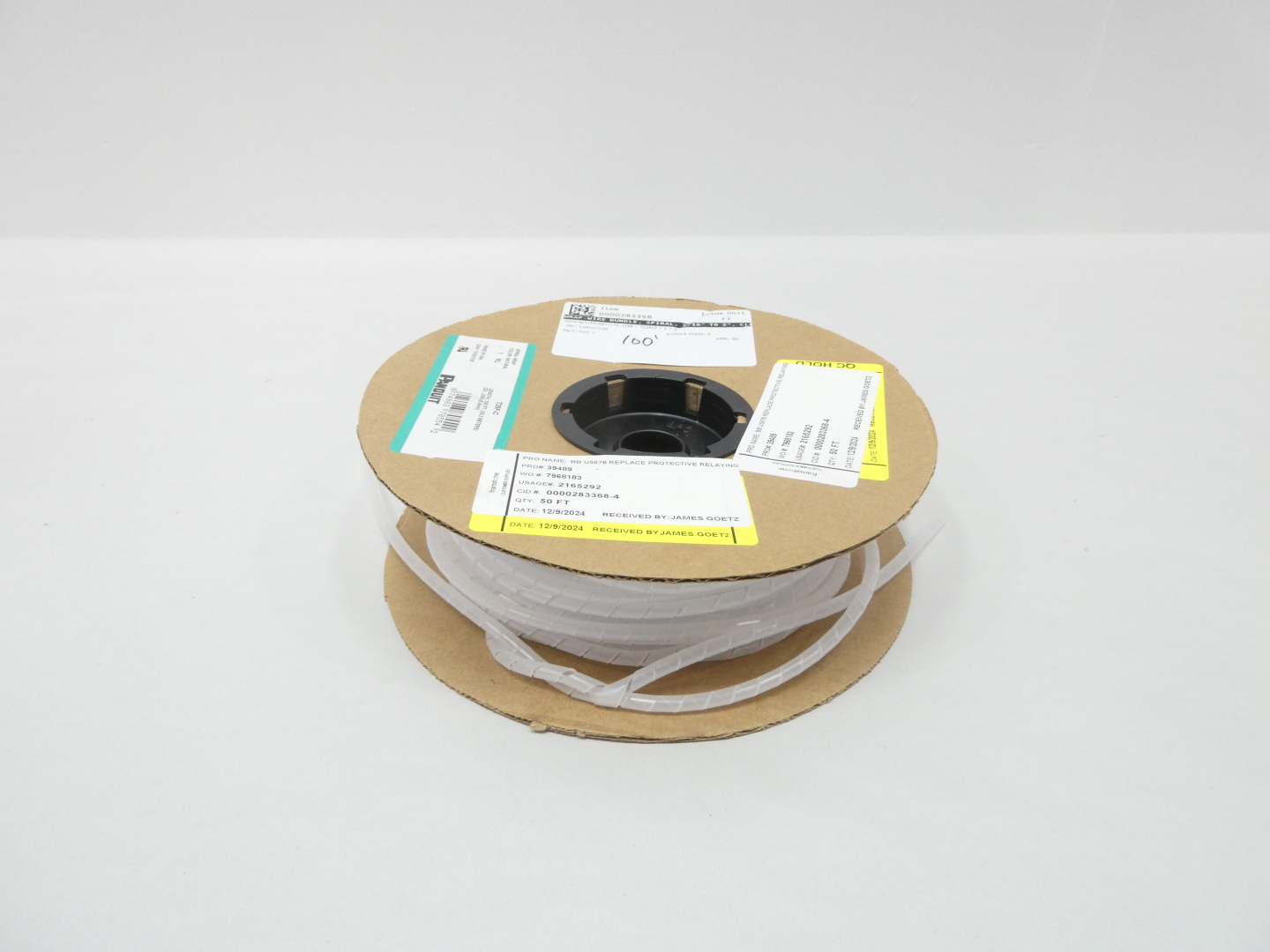

T25F-C Spiral Wrap, Natural, PE, 0.1875" Min Dia., 100' Roll, PK1
T25F-C
T25F-C
  • Termin płatności do 90 dni od 500+ dostawców.
  • Rabaty na odsprzedaż do 40%!
Zarejestruj się
Wyślij zapytanie o cenę
1
Metody płatności:
Łącznie 381 części w magazynie od 5 dostawców

Opis

Końcówka SeriiZgodny z RoHS
The T25F-C Polyethylene Spiral Wrap Product provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts of single or multiple cables. Lightweight, flexible, durable protection allows for use with irregular shapes. Installation tool supplied. Rated for use up to 149°F (65°C). Polyethylene. 0.25" diameter (6.4mm) for 3/16" - 2" (4.8mm - 50.8mm) bundle range. Color Natural. 100 ft. long

Additional Information

Part Number
T25F-C
UPC
074983705542
UNSPSC
39131604
Tariff Code
3926909990
Country of Origin
US
ETIM
Group Code : EG000003
Group Description : Protective hose systems
Class Description : Cable bundle hose
Class Code : EC002604
Version : 7

Specifications

Product Segment
IEI
Product Type
Spiral Wrap
Application
Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Color
Natural
Environment
Indoor
Flammability Rating
UL94-HB
Includes
Installation Tool
Material
Polyethylene
Resistance Properties
Abrasion Resistance
Maximum Bundle Diameter (mm)
50.8
Maximum Bundle Diameter (In.)
2
Maximum Operating Temperature (°C)
50
Maximum Operating Temperature (°F)
122
Minimum Bundle Diameter (In.)
0.1875
Minimum Bundle Diameter (mm)
4.8
Minimum Operating Temperature (°F)
-40
Minimum Operating Temperature (°C)
-40
Outer Diameter (mm)
6.4
Outer Diameter (In.)
0.25
Overall Length (ft.)
100
Overall Length (m)
30.5
Standards Met
UL Recognized - E141152; UL94HB
Wall Thickness (mm)
1.02
Wall Thickness (In.)
0.04

Packaging Details

UPC
07498370554
GTIN Package
00074983705542
Standard Package Volume Ft3
0.2695
Standard Package Weight Pounds
1.8000
Std Package Height In
4.35
Std Package Height MM
110.49
Std Package Length In
10.4
Std Package Length MM
264.16
Std Package Width In
10.25
Std Package Width MM
260.35
Std. Pkg. UOM
Roll
UOM EA PK
EA
Std. Pkg. Qty.
1
Min. Order UOM
Roll
Country of Origin 2Digit
US
RoHS Compliant
Compliant
EAN
00074983705542
ARRA Compliant
Y
Mercury Content Indicator
No
Hazardous Material Flag
N
Min Order Qty
1
Pallet Quantity
160
Pallet Weight
288.0000
