Schneider Electric
170ADO34000
1 / 1
Opis
Końcówka Serii

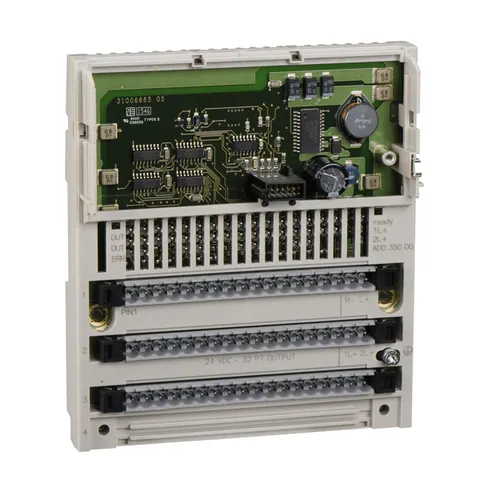

This output module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete output base DC module offers 2 groups of 8 outputs, 16 discrete outputs with solid state switch type. It offers discrete output voltage of 24V DC. There is an isolation between channels and bus at 500V AC. It features 16 LEDs for channel status signaling. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.21kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.- Country of Origin
- ID
- Part Number
- 170ADO34000
- Tariff Code
- 85389099
- EAN
- 3595861147669
- UNSPSC
- 32151601
£112.50
net£125.00
Darmowa wysyłka!1
Metody płatności:
- Najlepsza oferta od:
Zaufany dostawca Automa.Net- Dostępność:
- 1 szt.W magazynieZaktualizowano: 07-11-2024
- Gwarancja:
- 12 miesięcy
- Szacowany czas dostawy:
- 12-13 listopada do Wielka Brytania
- Stan produktu:
- Używany
Używany - Używany przedmiot z możliwymi śladami zużycia kosmetycznego. Jest w pełni sprawny i działa zgodnie z przeznaczeniem, chociaż oryginalne opakowanie może być nieobecne.
Informacje o wysyłce
Bezpieczny proces płatności
Zasady zwrotu i refundacji
Zasady wysyłki
Gwarancja
Environment
- Product Certifications
- UL || FM Class 1 Division 2 || CSA
- Ambient Air Temperature For Operation
- 0-60 °C
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Ambient Air Temperature For Storage
- -40-85 °C
- Relative Humidity
- 95-95 % without condensation
- Resistance To Electrostatic Discharge
- 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
- Operating Altitude
- <= 16404.2 ft (5000 m)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1403005EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Power Dissipation
- 3.5 W typical || 4.5 W maximum
- Height
- 141.5 mm
- [Ue] Rated Operational Voltage
- 24 V DC
- Terminals Description Plc N°1
- (14)OUT_DIS#14 || (2L+)PW_POS || (L+)PW_POS || (5)OUT_DIS#5 || (1)OUT_DIS#1 || (15)OUT_DIS#15 || (M-)PW_NEG || (12)OUT_DIS#12 || (8)OUT_DIS#8 || (4)OUT_DIS#4 || (16)OUT_DIS#16 || (6)OUT_DIS#6 || (2)OUT_DIS#2 || (10)OUT_DIS#10 || (11)OUT_DIS#11 || TB || (13)OUT_DIS#13 || (7)OUT_DIS#7 || (9)OUT_DIS#9 || (3)OUT_DIS#3 || (1L+)PW_POS
- Maximum Voltage Drop
- <0.5 V 0.5 A at state 1
- Response Time
- 0.1 ms from state 0 to state 1 || 0.1 ms from state 1 to state 0
- Current Consumption
- 250 mA 24 V DC
- Surge Current
- 5 A 1 ms
- Marking
- CE
- Discrete Output Current
- 4 A per group || 8 A per module
- Net Weight
- 0.21 kg
- Maximum Leakage Current
- 1 mA 24 V DC
- Local Signalling
- for channel status 16 LEDs
- Output Overload Protection
- outputs electronically protected
- Width
- 125 mm
- Depth
- 47.5 mm
- Isolation Between Channels And Bus
- 500 V AC
Specifications
- Discrete Output Type
- solid state switch
- Group Of Channels
- 2 groups of 8 outputs
- Range Of Product
- Modicon Momentum automation platform
- Current Per Channel
- 0.5 A
- Product Or Component Type
- discrete output base DC
- Discrete Output Voltage
- 24 V DC
- Discrete Output Number
- 16
- Short-Circuit Protection
- outputs electronically protected
- Protective Treatment
- TC
