Schneider Electric
389FXCXC-120A
1 / 5
Opis

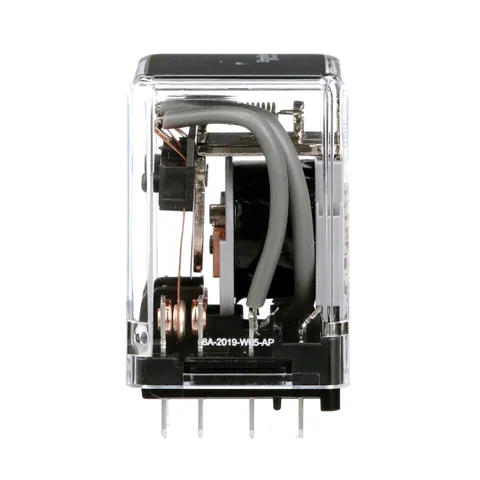

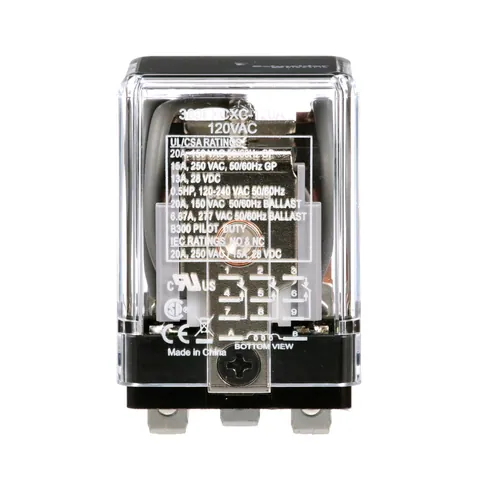

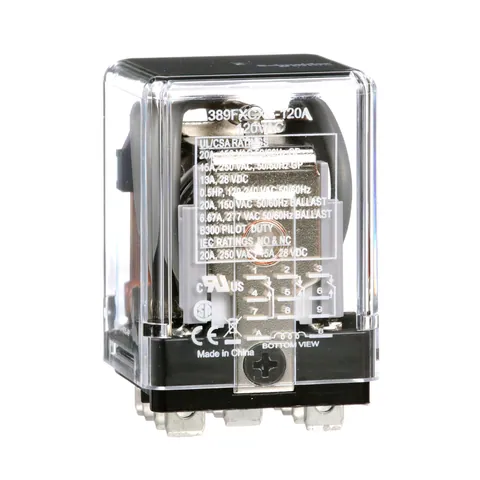

The 389F series power relay, 389FXCXC-120A , offers high contact rating of 20 A at 150 VAC with ability to hold motor loads up to 0.5 hp at 120 to 240 VAC with nominal coil voltage 120 VAC . Maximum switching voltage 300 V makes relay suitable for high-power switching applications. Supported ballast load contact rating perfectly suits for lighting controls. Silver alloy 3PDT contact configuration makes an ideal solution for variety of application requirements. Plug-in (socket) mounting option with wide range of accessories helps increase design and installation flexibility. Environmentally friendly design is compliant with the European Restriction of Hazardous Substances directive (RoHS).- Country of Origin
- CN
- Part Number
- 389FXCXC-120A
- EAN
- 39122324
- UNSPSC
- 39122324
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Specifications
- Contacts Type And Composition
- 3 NO + 3 NC
- Switch Function
- 3PDT
- Product Or Component Type
- power relay
Complementary
- Input Voltage
- 120 V AC
- Voltage Range
- 0.85...1.1 Uc AC
- [Ie] Rated Operational Current
- 20 A at 150 V AC (on resistive load) conforming to UL || 15 A at 250 V AC (on resistive load) conforming to UL || 13 A at 28 V DC (on resistive load) conforming to UL || 20 A at 150 V AC (ballast) conforming to UL || 6.67 A at 277 V AC (ballast) conforming to UL || 20 A at 250 V AC (NO/NC) conforming to IEC || 15 A at 28 V DC (NO/NC) conforming to IEC
- Input Resistance
- 1700 Ohm
- Minimum Switching Current
- 100 mA 5 V DC
- Connections - Terminals
- Quick
- Mounting Support
- socket
- Power Consumption In W
- 1.3-1.3 W DC
- Contacts Material
- silver alloy contacts
- Power Consumption In Va
- 2-2 VA AC
- Input Current
- 20 A
- Drop-Out Voltage Threshold
- >= 0.1 Uc AC/DC
- Maximum Horse Power Rating
- 0.5 hp 120/240 V AC 50/60 Hz
- Net Weight
- 84 g
- Maximum Switching Voltage
- 300 V AC
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1406038EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environment
- Product Certifications
- cURus || CSA || CE
- Ambient Air Temperature For Operation
- -30-55 °C
- Ambient Air Temperature For Storage
- -30-85 °C
- Electrical Durability
- 100000 cycles resistive load || 50000 cycles resistive DC load
- Mechanical Durability
- 5000000 cycles
- Dielectric Strength
- 2200 V AC between coil and contact || 2200 V AC between poles || 1600 V AC between contacts
