Schneider Electric
788XBXRM4L-24A
1 / 5
Opis

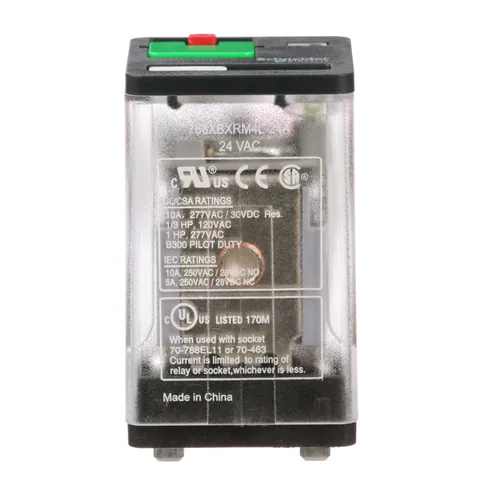

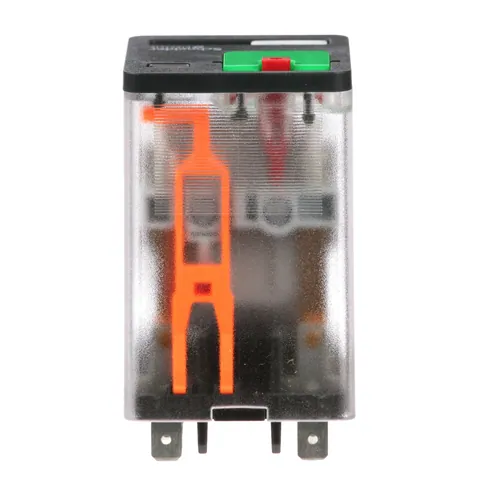

The SE Relays 788R series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 10A resistive at 277VAC, motor 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.- Country of Origin
- CN
- Part Number
- 788XBXRM4L-24A
- EAN
- 39122325
- UNSPSC
- 39122325
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Specifications
- Contacts Type And Composition
- 2 NC + 2 NO
- Line Rated Current
- 10 A
- Switch Function
- DPDT
- Product Or Component Type
- plug-in electromechanical relay
Complementary
- Average Consumption
- 3 VA
- Height
- 53 mm
- Minimum Switching Current
- 10 mA 17 V DC
- Mounting Support
- plug-in
- Local Signalling
- LED Cover || flag
- Contacts Material
- silver alloy, gold flashed
- Rated Power In Hp
- 0.33 HP 120 V AC || 1 HP 277 V AC
- [Ue] Rated Operational Voltage
- 24 V AC
- Control Circuit Voltage Limits
- 0.85...1.1 Un AC
- Vibration Resistance
- +/- 1 mm 10-35 Hz in operation || 3 gn 35-150 Hz in operation
- Resistance
- 72 Ohm
- Width
- 35 mm
- Drop-Out Voltage Threshold
- >= 0.15 Uc AC || >= 0.1 Uc DC
- Depth
- 35.5 mm
- Operating Time
- 20 ms
- Net Weight
- 83 g
- Maximum Switching Voltage
- 300 V UL || 300 V CSA || 250 V IEC
- Control Type
- lockable test button
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1406038EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environment
- Product Certifications
- UL || CSA || CE || EAC
- Shock Resistance
- 10 gn
- Ambient Air Temperature For Operation
- -40-55 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Mechanical Durability
- 5000000 cycles
- Dielectric Strength
- 2500 V AC between coil and contact || 2000 V AC between poles || 1500 V AC between contacts
- Electrical Durability
- 100000 cycles
- Ip Degree Of Protection
- IP40
