Schneider Electric
8910DPA32V04
1 / 5
Opis
Końcówka Serii

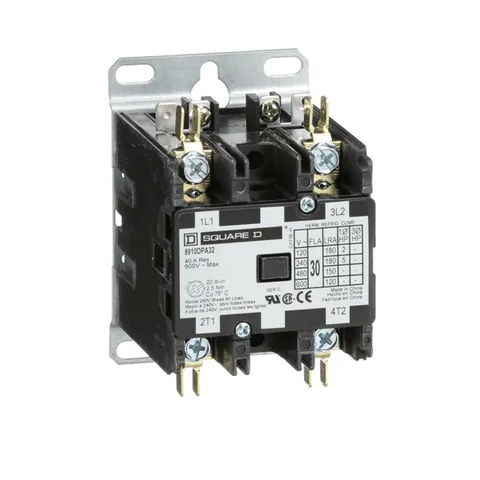

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 277 VAC 60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.- Country of Origin
- CN
- Part Number
- 8910DPA32V04
- Tariff Code
- 8536490065
- EAN
- 39121529
- UPC
- 785901024408
- UNSPSC
- 39121529
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Environment
- Product Certifications
- UL Recognized || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- [Uc] Control Circuit Voltage
- 277 V AC 60 Hz
- Locked Rotor Rated Current
- 150 A 460 V AC || 120 A 575 V AC || 180 A 277 V AC
- Maximum Horse Power Rating
- 2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase
- Phase
- 1 phase
- Electrical Connection
- binder head || quick connect terminals
- [Ue] Rated Operational Voltage
- 600 V AC
Specifications
- Range Of Product
- DPA
- Product Or Component Type
- Definite Purpose Contactor
- Pole Contact Composition
- 2 NO
- Poles Description
- 2P
- Line Rated Current
- 30 A
Dokumenty
Data Sheet
