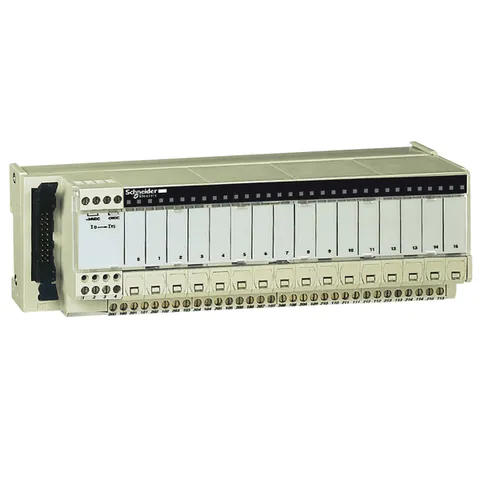

Schneider Electric ABE7H16F43

This passive connection sub-base, part of the Modicon ABE7 range, accommodates 16 digital output channels, each with two terminals. Operating at a control circuit voltage of 24VDC, it facilitates digital output control functions effectively.

The sub-base is equipped with screw terminals for reliable electrical connections and features a 20-way HE10 interface for seamless integration with programmable logic controllers. With a tightening torque requirement of 0.6 N·m using a flat 3.5 mm screwdriver, its installation is straightforward. The device has an IP20 degree of protection and weighs 0.640 kg, making it suitable for various industrial applications where rapid I/O module connection is necessary.

Designed for compatibility with Modicon M221 Book, TSX Micro, and Modicon Premium controllers, as well as Modicon TM3 and X80 I/O expansion modules, this sub-base simplifies wiring in automation systems. It includes multiple safety features, such as short-circuit protection with an internal fuse rated at 2 A and a maximum output current of 1.8 A. Furthermore, it is certified by DNV, CSA, UL, GL, and EAC, ensuring compliance with industry standards. The Designation Code for this model is ABE7H16F43.
