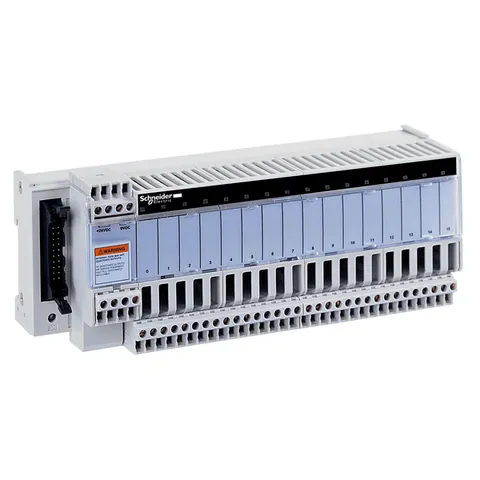

ABE7P16T230

Additional Information

Part Number

ABE7P16T230

UNSPSC

32151703

Tariff Code

8538100000

Country of Origin

LV

Environment

Product Certifications

CSA || DNV || GL || UL || EAC

Resistance To Radiated Fields

10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3

Ambient Air Temperature For Operation

-5-60 °C IEC 61131-2

Shock Resistance

15 gn 11 ms IEC 60068-2-27

Vibration Resistance

2 gn 10-150 Hz)IEC 60068-2-6

Ip Degree Of Protection

IP2X conforming to IEC 60529

Pollution Degree

2 IEC 60664-1

Resistance To Incandescent Wire

750 °C 30 s IEC 60695-2-11

Ambient Air Temperature For Storage

-40-80 °C IEC 61131-2

Resistance To Electrostatic Discharge

4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2

Resistance To Fast Transients

2 kV level 3 IEC 61000-4-4

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP121229EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1212029EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Short-Circuit Protection

1 A internal fuse, 5 x 20 mm, fast blow PLC end)

[Uimp] Rated Impulse Withstand Voltage

2.5 kV

Status Led

1 LED per channel (Green) channel status || 1 LED (Green) power ON

Installation Category

II IEC 60664-1

Maximum Current Per Output Common

16 A

Net Weight

0.655 kg

Fixing Mode

by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)

Polarity Distribution

volt-free

Tightening Torque

0.6 N.m flat Ø 3.5 mm

Maximum Supply Current

1 A

Supply Circuit Type

DC

Voltage Drop On Power Supply Fuse

0.3 V

Product Compatibility

ABE7ACC20 || ABS7SA2. || ABR7S2. || ABS7SC2.

[Ui] Rated Insulation Voltage

300 V coil circuit/contact circuits IEC 60947-1 || 2000 V terminals/mounting rails

Specifications

Range Of Product

Modicon ABE7

Product Or Component Type

sub-base for plug-in relay

Connections - Terminals

screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid

Number Of Channels

16

Sub-Base Type

output sub-base

[Us] Rated Supply Voltage

19...30 V IEC 61131-2
