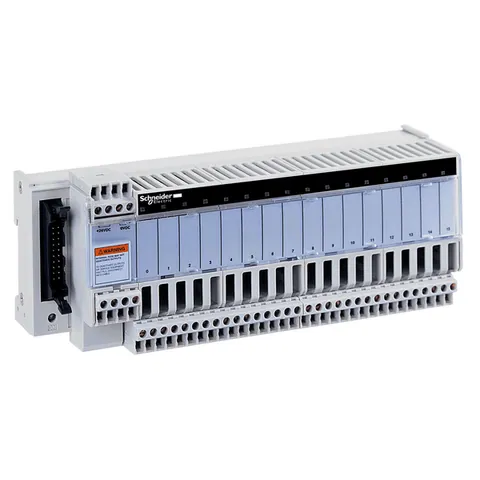

ABE7S16E2B1

Additional Information

Part Number

ABE7S16E2B1

UNSPSC

32151603

Tariff Code

8538908180

Country of Origin

LV

Environment

Product Certifications

UL || DNV || CSA || GL || EAC

Standards

IEC 61131-2 Type 1

Resistance To Radiated Fields

10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3

Ambient Air Temperature For Operation

-5-60 °C IEC 61131-2

Shock Resistance

15 gn 11 ms IEC 60068-2-27

Dielectric Strength

2000 V 50/60 Hz IEC 60947-1

Vibration Resistance

2 gn 10-150 Hz)IEC 60068-2-6

Ip Degree Of Protection

IP2X conforming to IEC 60529

Pollution Degree

2 IEC 60664-1

Resistance To Incandescent Wire

750 °C IEC 60695-2-11

Ambient Air Temperature For Storage

-40-80 °C IEC 61131-2

Resistance To Electrostatic Discharge

4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2

Resistance To Fast Transients

2 kV level 3 IEC 61000-4-4

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP121229EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1212029EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Minimum Switching Current

1 mA for PLC end

Isolation Plc/Operative Part

yes

Terminal Block Type

removable

Maximum Switching Current

15 mA PLC end)

Current Per Channel

0.012 A

Installation Category

II IEC 60664-1

Protection Type

internal fuse 1 A 5 x 20 mm fast blow PLC end || adjustable by external fuse fast blow sensor end

Response Time

<= 0.05 ms from state 0 to 1 || <= 0.4 ms from state 1 to 0

[Ui] Rated Insulation Voltage

2000 V

Current State 1 Guaranteed

>= 2 mA sensor end)

Net Weight

0.37 kg

Fixing Mode

by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)

[Uimp] Rated Impulse Withstand Voltage

2.5 kV IEC 60947-1

Switching Frequency

<= 1000 Hz 50 %

Voltage State 1 Guaranteed

>= 15 V sensor end

Tightening Torque

0.6 N.m flat Ø 3.5 mm

Supply Voltage Limits

19-30 V DC PLC end)IEC 61131-2

Specifications

Range Of Product

Modicon ABE7

Product Or Component Type

solid state input relay sub-base

Number Of Terminal Per Channel

2

Connections - Terminals

screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² AWG 24...AWG 14) solid

Number Of Channels

16

[Us] Rated Supply Voltage

24 V DC PLC end) || 24 V DC sensor end)
