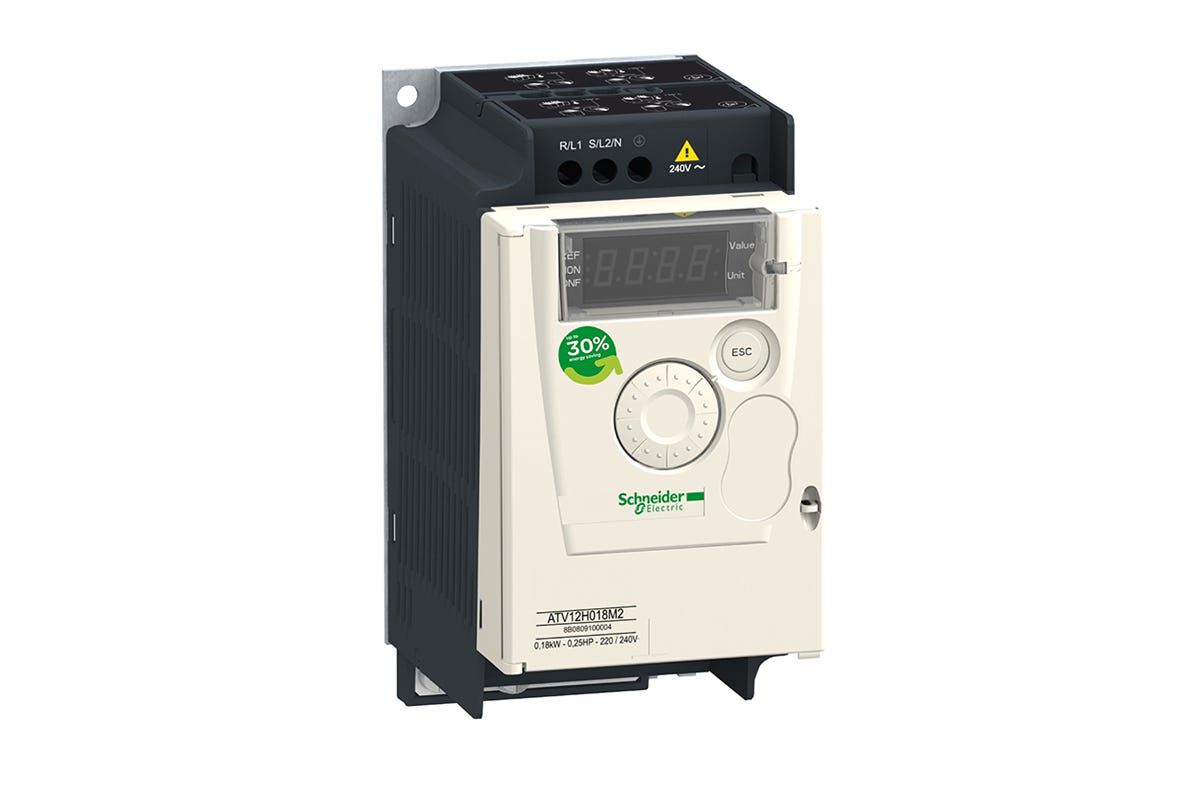

ATV12H018M2

Environment

Product Certifications

NOM || CSA || C-tick || UL || GOST || RCM || KC

Maximum Deflection Under Vibratory Load (During Operation)

1.5 mm at 2...13 Hz

Standards

UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3

Vibration Resistance

1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6

Shock Resistance

15 gn 11 ms IEC 60068-2-27

Regulation Loop

adjustable PID regulator

Operating Altitude

> 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating

Overvoltage Category

class III

Environmental Class (During Operation)

class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3

Electromagnetic Emission

radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2...12 kHz shielded motor cable <5 m || conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m || conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <20 m || conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable <50 m || conducted emissions with additional EMC filter environment 2 category C3 IEC 61800-3 4...12 kHz shielded motor cable <50 m

Maximum Acceleration Under Shock Impact (During Operation)

150 m/s² at 11 ms

Pollution Degree

2

Electromagnetic Compatibility

electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || surge immunity test level 3 IEC 61000-4-5 || voltage dips and interruptions immunity test IEC 61000-4-11

Ambient Air Temperature For Operation

-10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C

Marking

CE

Maximum Acceleration Under Vibrational Stress (During Operation)

10 m/s² at 13...200 Hz

Noise Level

0 dB

Ambient Air Temperature For Storage

-25-70 °C

Relative Humidity

5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3

Assembly Style

on base plate

Operating Position

vertical +/- 10 degree

Ambient Air Transport Temperature

-25-70 °C

Contractual warranty

Warranty

18 months

Offer Sustainability

Mercury Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Rohs Exemption Information

Yes

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Prospective Line Isc

1 kA

Network Frequency

50-60 Hz

Power Dissipation In W

natural 18.0 W

Line Current

3.4 A 100 V heavy duty) || 2.8 A 120 V heavy duty)

Asynchronous Motor Control Profile

voltage/frequency ratio (V/f) || sensorless flux vector control || quadratic voltage/frequency ratio

Relative Symmetric Network Frequency Tolerance

5 %

Apparent Power

0.7 kVA 240 V heavy duty)

Net Weight

0.7 kg

Type Of Polarization

no impedance

Frequency Resolution

analog input converter A/D, 10 bits || display unit 0.1 Hz

Switching Frequency

2...16 kHz adjustable || 4...16 kHz with derating factor

Maximum Transient Current

2.1 A 60 s heavy duty) || 2.3 A 2 s heavy duty)

Communication Service

read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)

Analogue Input Number

1

Motor Slip Compensation

preset in factory || adjustable

Discrete Output Number

2

Method Of Access

server Modbus serial

Number Of Addresses

1-247

Speed Range

1-20

Discrete Input Number

4

Linearity Error

+/- 0.3 % of maximum value analogue input

Width

72 mm

Transmission Rate

9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s

Depth

102.2 mm

Sampling Duration

20 ms +/- 1 ms logic input || 10 ms analogue input

Maximum Output Frequency

4 kHz

Height

143 mm

Acceleration And Deceleration Ramps

U || linear from 0 to 999.9 s || S

Time Constant

20 ms +/- 1 ms for reference change

Maximum Output Voltage

240 V

Base Load Current At High Overload

1.4 A

Speed Drive Output Frequency

0.5-400 Hz

Transmission Frame

RTU

Relay Output Number

1

Transient Overtorque

150-170 % of nominal motor torque depending on drive rating and type of motor

Data Format

8 bits, configurable odd, even or no parity

Connector Type

1 RJ45

Analogue Output Number

1

Physical Interface

2-wire RS 485

Insulation

electrical between power and control

Tightening Torque

0.8 N.m

Continuous Output Current

1.4 A 4 kHz

Nominal Switching Frequency

4 kHz

Quantity Per Set

set of 1

Braking To Standstill

by DC injection

Protection Type

line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by continuous calculation of I²t

Specifications

Product Or Component Type

variable speed drive

Ip Degree Of Protection

IP20

Communication Port Protocol

Modbus

Nominal Output Current

1.4 A

Product Specific Application

simple machine

Maximum Horse Power Rating

0.25 hp

Supply Frequency

50/60 Hz +/- 5 %

Range Of Product

Altivar 12

Motor Power Kw

0.18 kW

[Us] Rated Supply Voltage

200...240 V - 15...10 %

Mounting Mode

cabinet mount

Emc Filter

integrated
