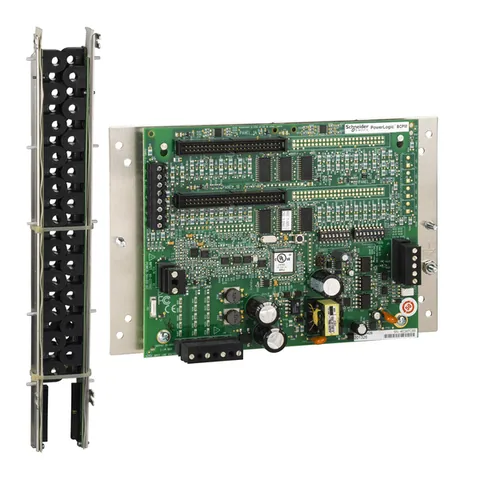

BCPMSCB60S

Additional Information

Part Number

BCPMSCB60S

UNSPSC

83101808

Tariff Code

9028300000

Environment

Height

146 mm

Standards

ANSI C12.1 || IEC 61036 || UL 508 || EN 61010

Mounting Support

board

Product Certifications

UL

Net Weight

1.5 kg

Mounting Mode

clip-on

Ambient Air Temperature For Storage

-40-70 °C

Relative Humidity

0-95 % 0-60 °C

Width

288 mm

Operating Altitude

9842.52 ft (3000 m)

Contractual warranty

Warranty

18 months

Offer Sustainability

California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Eu Rohs Directive

Compliant

Complementary

Communication Port Support

RS485

Measurement Voltage

90-277 V phase to neutral || 150-480 V phase to phase

Sampling Rate

256 samples/cycle

Communication Port Protocol

Modbus RTU

Communication Of Data

high current alarm || under voltage alarm || low current alarm || high-high current alarm || low-low current alarm || over voltage alarm

Provided Equipment

4 x cables || 4 x adapter board || 60 x current transformer

Measurement Accuracy

branch current 2 % 0.25…2 A || branch current 1 % 2…100 A || mains current 3 % 1…100 % || mains current 3 % 2…100 % || voltage 1 % 90…277 V

Update Time

1.8 s

Analogue Input Type

split core CT 0.333 V60 x

Specifications

Network Frequency

60 Hz || 50 Hz

Power Quality Analysis

voltage sag and swell detection

Variant

intermediate

Type Of Measurement

voltage || current || frequency || active power || power factor || active energy

Power Monitoring

basic instrumentation

Product Or Component Type

multi-circuit energy meter

Product Name

PowerLogic BCPMSC

Range

PowerLogic

Energy Management

sub billing and cost allocation

[Us] Rated Supply Voltage

90...277 V AC 50/60 Hz +/- 1 %

Device Application

sub billing

Device Short Name

BCPMSCB
