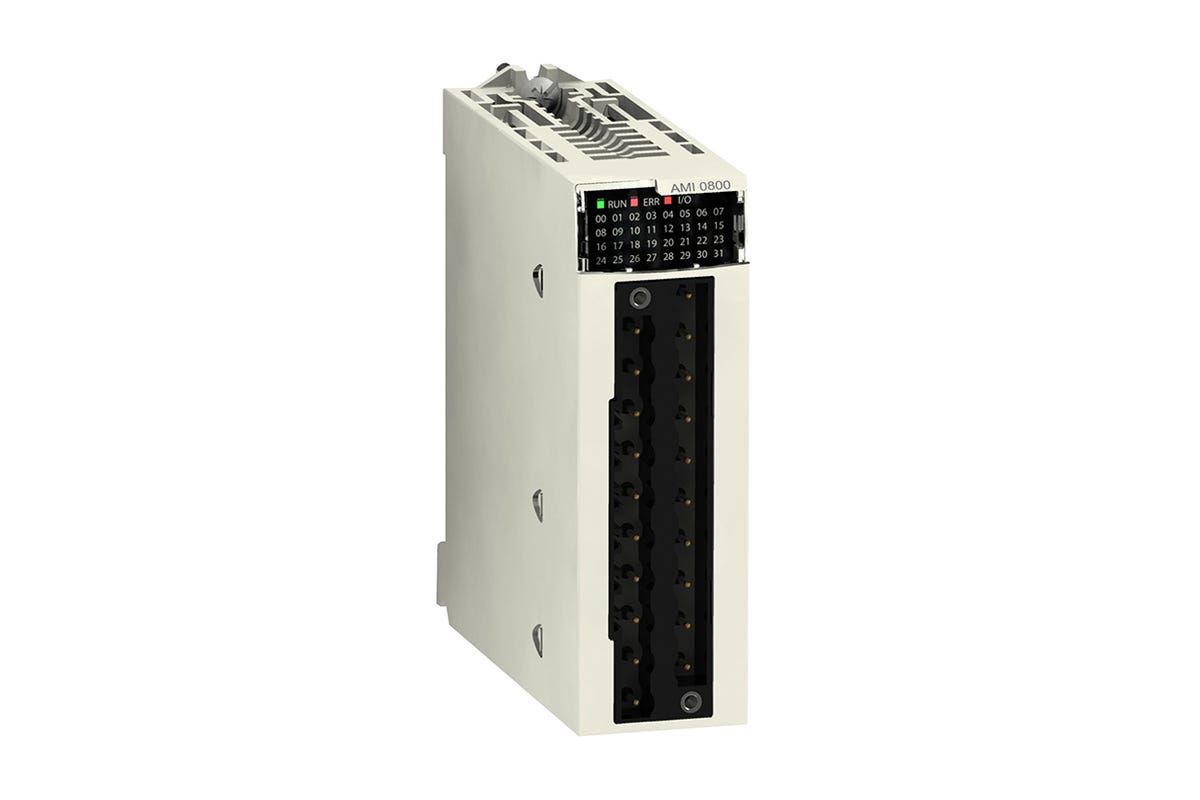

BMXAMI0810
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Additional Information
- Part Number
- BMXAMI0810
- UNSPSC
- 32151705
- Tariff Code
- 8538908180
- Country of Origin
- FR
Environment
- Product Certifications
- CE || RCM || CSA || EAC || Merchant Navy || UL
- Ambient Air Temperature For Operation
- 0-60 °C
- Standards
- EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
- Shock Resistance
- 30 gn
- Vibration Resistance
- 3 gn
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ambient Air Temperature For Storage
- -40-85 °C
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Ip Degree Of Protection
- IP20
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Mtbf Reliability
- 900000 H
- Measurement Error
- <= 0.1 % of full scale +/- 10 V 0...60 °C || <= 0.1 % of full scale +/- 5 V 0...60 °C || <= 0.1 % of full scale 0...10 V 0...60 °C || <= 0.1 % of full scale 0...5 V 0...60 °C || <= 0.1 % of full scale 1...5 V 0...60 °C || <= 0.3 % of full scale +/- 20 mA 0...60 °C || <= 0.3 % of full scale 0...20 mA 0...60 °C || <= 0.3 % of full scale 4...20 mA 0...60 °C || 0.15 % of full scale +/- 20 mA 25 °C || 0.15 % of full scale 0...20 mA 25 °C || 0.15 % of full scale 4...20 mA 25 °C || 0.075 % of full scale +/- 10 V 25 °C || 0.075 % of full scale 0...10 V 25 °C || 0.075 % of full scale 0...5 V 25 °C || 0.075 % of full scale 1...5 V 25 °C || 0.075 % of full scale +/- 5 V 25 °C
- Maximum Conversion Value
- +/- 11.4 V +/- 10 V || +/- 11.4 V 0...10 V || +/- 11.4 V 0...5 V || +/- 11.4 V 1...5 V || 0...30 mA +/- 20 mA || 0...30 mA 0...20 mA || 0...30 mA 4...20 mA || 0...30 mA +/- 5 V
- Type Of Filter
- first order digital filtering
- Status Led
- 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O
- Precision Of Internal Conversion Resistor
- 0.1 % - 15 ppm/°C
- Temperature Drift
- 30 ppm/°C +/- 10 V || 30 ppm/°C +/- 5 V || 30 ppm/°C 0...10 V || 30 ppm/°C 0...5 V || 30 ppm/°C 1...5 V || 50 ppm/°C +/- 20 mA || 50 ppm/°C 0...20 mA || 50 ppm/°C 4...20 mA
- Common Mode Rejection
- 80 dB
- Current Consumption
- 150 mA 3.3 V DC || 54 mA 24 V DC
- Analogue Input Resolution
- 15 bits + sign
- Minimum Crosstalk Attenuation
- 80 dB
- Net Weight
- 0.165 kg
- Input Impedance
- 10 MOhm in voltage mode || 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
- Isolation Voltage
- 300 V DC between channels || 1400 V DC between channels and ground || 1400 V DC between channels and bus
- Fast Read Cycle Time
- 1 ms + 1 ms x number of channels used
- Power Consumption In W
- 1.06 W 24 V DC typical || 1.50 W 24 V DC maximum || 0.32 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum
- Digital Value Format
- 32768 to + 32767 in maximum user scale || +/- 10000 by default
- Nominal Read Cycle Time
- 9 ms for 8 channels
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Analog/Digital Conversion
- 16 bits
- Measurement Resolution
- 0.36 mV +/- 10 V || 0.36 mV 0...10 V || 0.36 mV 0...5 V || 0.36 mV 1...5 V || 0.36 mV +/- 5 V || 1.4 µA +/- 20 mA || 1.4 µA 0...20 mA || 1.4 µA 4...20 mA
- Permitted Overload On Inputs
- +/- 30 mA 0...20 mA || +/- 30 mA 4...20 mA || +/- 30 V +/- 10 V || +/- 30 V +/- 5 V || +/- 30 V 0...10 V || +/- 30 V 0...5 V || +/- 30 V 1...5 V || +/- 30 mA +/- 20 mA
Specifications
- Range Of Product
- Modicon X80
- Product Or Component Type
- analog input module
- Input Level
- high level
- Electrical Connection
- 28 ways 1 connector
- Input Output Isolation
- isolated
- Analogue Input Number
- 8
- Analogue Input Type
- current +/- 20 mA || current 0...20 mA || current 4...20 mA || voltage +/- 10 V || voltage +/- 5 V || voltage 0...10 V || voltage 0...5 V || voltage 1...5 V
Dokumenty
Data Sheet
PobierzDodatkowe informacje
The Schneider Electric BMXAMI0810 is a programmable logic controller (PLC) from Schneider Electric's industrial automation market. This PLC is a small-sized, high-performance controller that is designed to meet the needs of a variety of industrial applications. It offers a wide range of features and is designed to be easy to install and operate.
The BMXAMI0810 is equipped with an advanced 32-bit ARM Cortex-M4 processor that operates at a frequency of 120 MHz. It is connected to a variety of digital and analog I/O, making it suitable for a wide range of automation tasks. The PLC is also equipped with an Ethernet port and supports multiple communication protocols, including Modbus TCP/IP, Profinet, and EtherNet/IP.
The BMXAMI0810 has built-in programming functions and can be easily programmed with Schneider Electric's SoMachine software. It also includes a web server and integrated security functions that enable secure remote management and monitoring. This PLC is rated for a wide temperature range and is suitable for use in a wide range of industrial environments.
