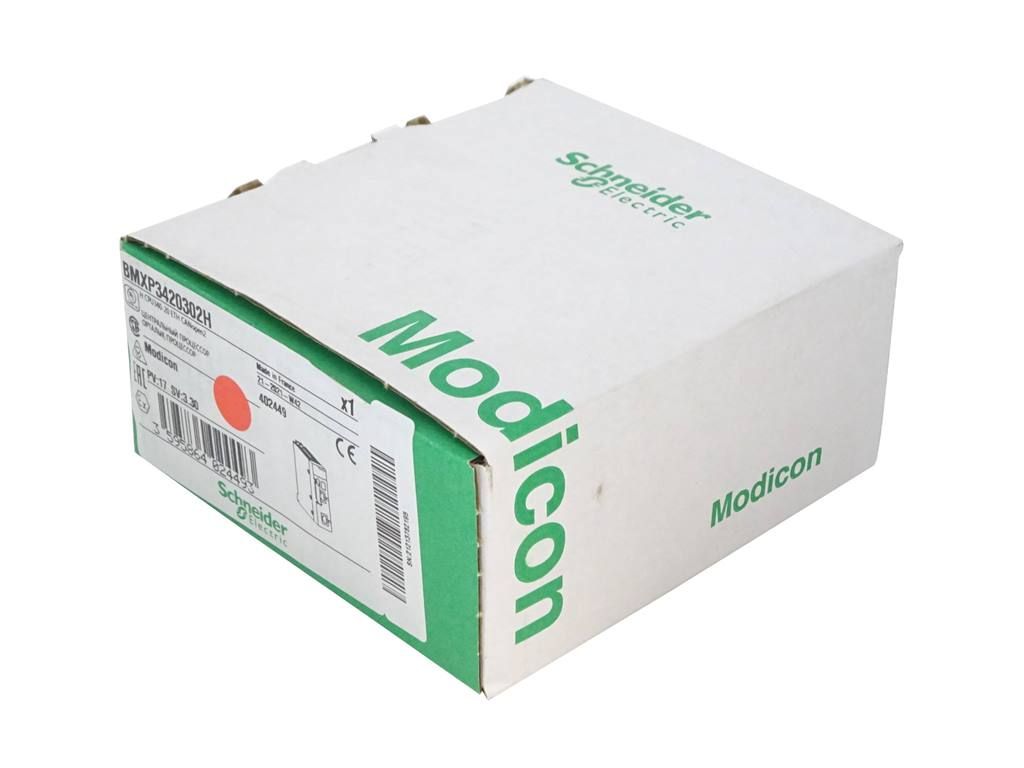

BMXP3420302H

Additional Information

Part Number

BMXP3420302H

UNSPSC

26101205

Tariff Code

8537109160

Country of Origin

FR

Environment

Ambient Air Temperature For Operation

-25-70 °C

Standards

EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0

Product Certifications

CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22

Environmental Characteristic

gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2

Directives

2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive

Relative Humidity

10-95 % without condensation

Protective Treatment

conformal coating

Ip Degree Of Protection

IP20

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Number Of Devices Per Segment

0-16 205 m CANopen) || 0-32 185 m CANopen) || 0-64 160 m CANopen)

Integrated Connection Type

USB port 12 Mbit/s || CANopen master bus SUB-D 9 2 twisted shielded pairs 20 kbit/s...1 Mbit/s || Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s

Status Led

1 LED (Green) activity on Ethernet network (ETH ACT) || 1 LED (Green) integrated machine/installation bus operational (CAN RUN) || 1 LED (Green) processor running (RUN) || 1 LED (Green) status of Ethernet network (ETH STS) || 1 LED (Red) data rate (ETH 100) || 1 LED (Red) I/O module fault (I/O) || 1 LED (Red) integrated machine/installation bus fault (CAN ERR) || 1 LED (Red) memory card fault (CARD ERR) || 1 LED (Red) processor or system fault (ERR) || 1 LED (Yellow) activity on Modbus (SER COM)

Communication Module Processor Capacity

2 Ethernet communication module || 4 AS-Interface module

Supply

internal power supply via rack

Default Size Of Object Areas

1024 %MWi internal words located internal data || 256 %KWi constant words located internal data || 512 %Mi located internal bits

Transmission Rate

1 Mbit/s 0-20 m 0-0.6 m || 125 kbit/s 0-500 m 0-10 m || 20 kbit/s 0-2500 m 0-300 m || 250 kbit/s 0-250 m 0-10 m || 50 kbit/s 0-1000 m 0-120 m || 500 kbit/s 0-100 m 0-10 m || 800 kbit/s 0-40 m 0-6 m

Marking

CE

Current Consumption

135 mA 24 V DC

Net Weight

0.215 kg

Application Structure

1 periodic fast task || no auxiliary task || 1 cyclic/periodic master task || 64 event tasks

System Overhead

0.13 ms fast task || 0.7 ms master task

Communication Service

Network management (NMT) CANopen || Process Data Object (PDO) CANopen || Service Data Object (SDO) CANopen || special functions (SYNC, EMCY, TIME) CANopen || bandwidth management, Ethernet TCP/IP || Data Editor, Ethernet TCP/IP || Modbus TCP messaging, Ethernet TCP/IP || Rack Viewer, Ethernet TCP/IP || SNMP network administrator, Ethernet TCP/IP

Maximum Size Of Object Areas

256 kB unlocated internal data || 32634 %Mi located internal bits

Execution Time Per Instruction

0.12 µs Boolean || 0.17 µs double-length words || 0.25 µs single-length words || 1.16 µs floating points

Bus Type

CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA || CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA || CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA

Number Of Instructions Per Ms

6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic || 8.1 Kinst/ms 100 % Boolean

Motion Control

independent axis CANopen

Port Ethernet

10BASE-T/100BASE-TX

Number Of Slave

63 CANopen

Memory Description

supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data || internal RAM 4096 kB || internal RAM 256 kB data || internal RAM 3584 kB program constants and symbols || supplied memory card (BMXRMS008MP) activation of standard web server, class B10

Control Channels

programmable loops

Specifications

Range Of Product

Modicon M340 automation platform

Number Of Racks

4

Product Or Component Type

processor module

Analogue I/O Processor Capacity

256 I/O multi-rack configuration || 66 I/O single-rack configuration

Number Of Slots

11

Product Specific Application

for severe environments

Concept

CANopen || Transparent Ready

Number Of Application Specific Channel

36

Discrete I/O Processor Capacity

1024 I/O multi-rack configuration || 704 I/O single-rack configuration
