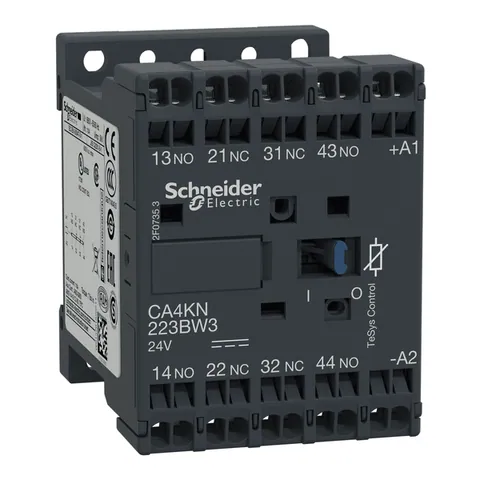

Schneider Electric CA4KN223BW3

The control relay features four contacts, comprising two normally open (NO) and two normally closed (NC) contacts, suitable for managing electromagnetic loads under AC-15 and DC-13 categories. It operates at a rated voltage of up to 690V and offers a low consumption control circuit voltage of 24V DC, ensuring minimal inrush current.

Designed to function reliably within an ambient temperature range of -25°C to +50°C, this relay supports operational rates up to 180 cycles per minute and is built for high durability with a mechanical lifespan of 30 million cycles. The compact dimensions of 45mm in width allow for easy installation on a 35mm DIN rail or via screw fixing.

In addition to its robust construction, the relay includes spring terminals for secure connections and is equipped with a built-in bidirectional peak limiting diode suppressor. It meets multiple international standards, including IEC, UL, and CSA certifications, ensuring compliance with various safety regulations.

This product is recognized as a Green Premium product, indicating adherence to environmental standards such as RoHS and REACh, and is free from substances of very high concern. The Designation Code for this control relay is CA4K.
