Schneider Electric
DU322

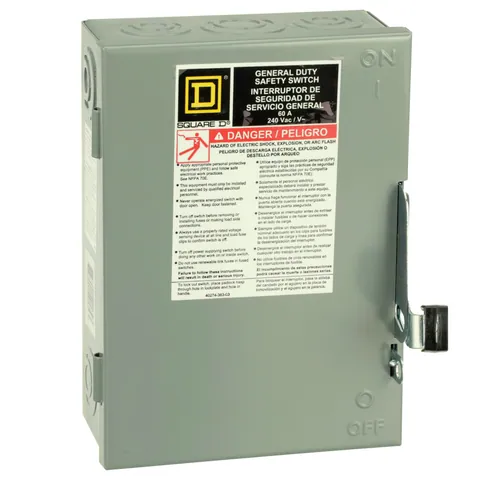

Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Additional Information
- Part Number
- DU322
- UPC
- 785901491743
- UNSPSC
- 39122218
- Tariff Code
- 8536509045
- Country of Origin
- MX
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1310005EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant
Complementary
- Height
- 9.25 in
- Device Mounting
- surface
- Tightening Torque
- 35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10) || 35-35 lbf.in (AWG 14...AWG 10) || 45-45 lbf.in 8.37-8.37 mm² (AWG 8) || 45-45 lbf.in 12.3-21.12 mm² (AWG 6...AWG 4) || 50-50 lbf.in 26.67-26.67 mm² (AWG 3)
- Net Weight
- 9 kg
- Electrical Connection
- lugs
- Awg Gauge
- AWG 12...AWG 3 aluminium || AWG 14...AWG 3 copper
- Width
- 7.25 in
- Wiring Configuration
- 3-wire
- Depth
- 3.63 in
Specifications
- Disconnector Device Type
- non-fusible disconnect switch
- Product Or Component Type
- Single Throw Safety Switch
- Phase
- 3 phase
- Series Name
- general duty
- Nema Degree Of Protection
- NEMA 1
- Line Rated Current
- 60 A
- Motor Power Hp
- 10 hp at 240 V AC 60 Hz for 1 phase motors || 15 hp at 240 V AC 60 Hz for 3 phase motors
- Device Composition
- none
- Device Application
- residential
- Number Of Poles
- 3
- [Ue] Rated Operational Voltage
- 240 V AC
