Schneider Electric

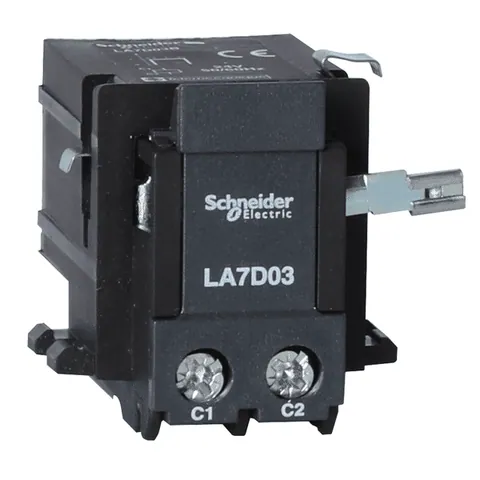

LA7D03M
Thermal overload relays, TeSys Deca, remote electrical tripping, 220...230V DC/AC
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
€40.86
1
Metody płatności:
Stan produktu:
Additional Information
- Part Number
- LA7D03M
- UNSPSC
- 39121117
- Tariff Code
- 8536490075
- Country of Origin
- FR
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- [Uc] Control Circuit Voltage
- 220/230 V AC 50/60 Hz || 220/230 V DC
- Accessory / Separate Part Category
- electrical accessory
- Product Or Component Type
- electrical remote tripping
- Product Compatibility
- LR2D || LR3D35.. || LRD15.. || LRD33.. || LR3D33.. || LR3D43.. || LRD43.. || LR3D15..
- Device Short Name
- LA7D
- Range
- TeSys
Complementary
- Inrush Power In W
- 0-100 W
- Maximum Inrush Power In Va
- 100 VA
- Net Weight
- 0.09 kg
Contractual warranty
- Warranty
- 18 months
