Schneider Electric
LAL363001021
1 / 1
Opis
Końcówka Serii

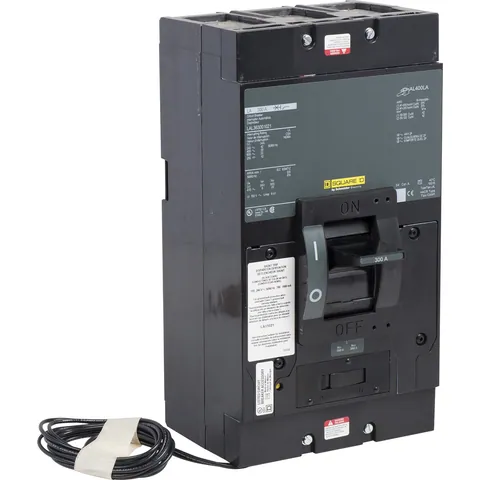

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 300A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker 1021 suffix indicates a factory installed shunt trip. LA breakers are UL 489, CSA, IEC certified.- Country of Origin
- MX
- Part Number
- LAL363001021
- Tariff Code
- 8536200020
- EAN
- 39121601
- UPC
- 785901339472
- UNSPSC
- 39121601
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Environment
- Product Certifications
- CSA || UL Listed || IEC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1410004EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free plastic parts product
Complementary
- Terminal Identifier
- AL400LA
- Height
- 11 in
- Tightening Torque
- 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
- Magnetic Tripping Current
- 3000-3000 A
- Electrical Connection
- lugs, load || lugs, line
- Magnetic Hold Current
- 1500 A
- Circuit Breaker Application
- HACR rated
- Mounting Mode
- unit mount
- Poles Description
- 3P
- Line Rated Current
- 300 A
- Width
- 6 in
- Depth
- 5.84 in
Specifications
- Trip Unit Technology
- thermal-magnetic
- Product Or Component Type
- circuit breaker
