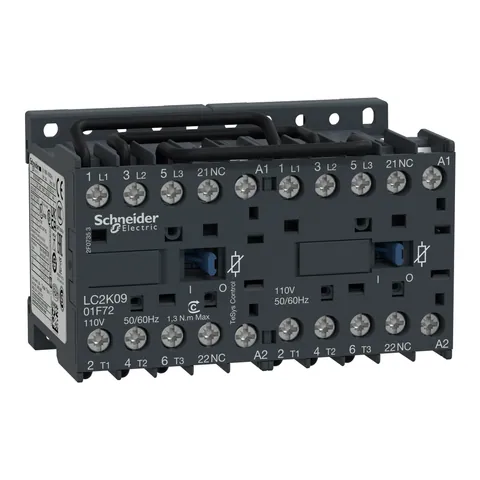

Schneider Electric LC2K0901F72

The reversing contactor operates effectively in motor control applications up to 9A at 690V AC-3, equivalent to 4kW at 400V. Additionally, it supports non-inductive load control up to 20A at 690V AC-1. Integrated with a 110V AC coil operating at 50/60Hz, it includes a transient suppressor module and a built-in instantaneous auxiliary contact (1 NC).

Designed for high operational efficiency, this device can handle up to 600 cycles per hour and functions reliably in environments up to 50°C. With dimensions of 90mm in width, 57mm in depth, and a height of 58mm, it can be mounted on DIN rails or fixed with screws. The contactor is compliant with multiple industry standards, including IEC, UL, CSA, CCC, and EAC, ensuring its suitability for a variety of applications.

In terms of mechanical robustness, it withstands shocks of up to 15 Gn (on the Y and Z axes) and vibrations up to 4 Gn at frequencies between 5 to 300 Hz. The product's protective treatment conforms to IEC standards, and it maintains an IP20 rating as per VDE regulations, making it suitable for standard operational conditions.
