Schneider Electric
LV429388

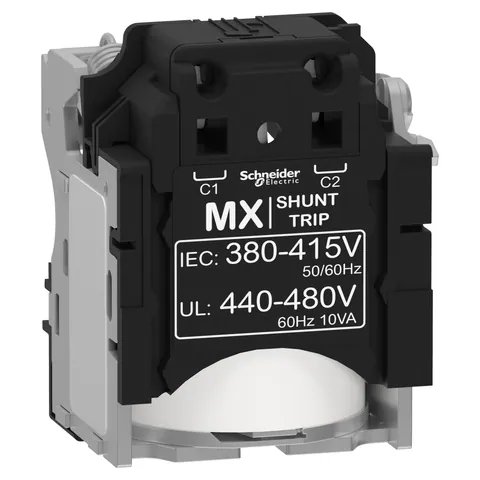

Shunt trip release MX, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
€33.25
1
Metody płatności:
Łącznie 130 części w magazynie od 21 dostawców
Stan produktu:
Oferta z czasem realizacji przez producenta
Wysyłka:1 - 2 Dni robocze
Najlepsza cena:
€29.43
Additional Information
- Part Number
- LV429388
- UNSPSC
- 39121601
- Tariff Code
- 8536308000
- Country of Origin
- PL
Specifications
- [Uc] Control Circuit Voltage
- 380...415 V AC 50 Hz || 440...480 V AC 60 Hz
- Range Of Product
- ComPact NSX100...250 || ComPacT NSX100...250 new generation || ComPact NSX400...630 || ComPacT NSX400...630 new generation || ComPact NSX100...250 DC || ComPacT NSX100...250 DC new generation || ComPact NSX100...250 DC PV || ComPacT NSX100...250 DC PV new generation || ComPact NSX400...630 DC || ComPacT NSX400...630 DC new generation || ComPact NSX400...630 DC PV || ComPacT NSX400...630 DC PV new generation
- Range Compatibility
- ComPacT new generation ComPacT NSX new generation || ComPacT new generation ComPacT NSX DC new generation || ComPact ComPact NSX || ComPact ComPact NSX DC || EasyPact EasyPact CVS || PowerPact PowerPact Multistandard
- Product Or Component Type
- voltage release
- Range
- ComPacT
- Voltage Release Type
- opening coil || shunt trip release
- Device Application
- control
- Device Short Name
- MX
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2304020EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- Auxiliary Connection Terminal
- spring 0.5-1.5 mm² AWG 20...AWG 16)
- Supply Inrush Power
- 10 VA
- Wire Stripping Length
- 7 mm
- Impulse Duration
- >= 20 ms
- Control Signal Type
- maintained || impulse
- Response Time
- 50 ms
- Threshold Tripping Voltage
- 0.7...1.1 x Un opening
Contractual warranty
- Warranty
- 18 months
