Schneider Electric M9F22440

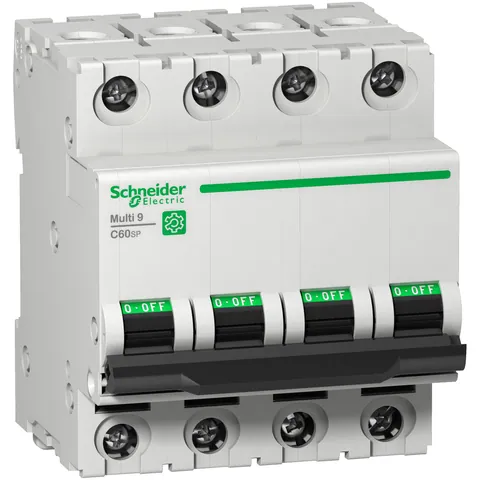

The Multi9 C60SP is a four-pole miniature circuit breaker (MCB) specifically designed for low voltage applications, with a rated current of 40A and a C tripping curve. It features a short-circuit breaking capacity of up to 10kA at 415VAC, in compliance with the EN/IEC 60947-2 standard. This product adheres to both industrial standards (EN/IEC 60898-1) and residential standards (EN/IEC 60947-2), ensuring a high level of protection against electrical faults.

Designed to prevent hazards such as short circuits, earth leakage, and overload, the Multi9 C60SP is particularly suited for original equipment manufacturers (OEMs) and control panel builders. It offers an electrical endurance of up to 10,000 cycles and a mechanical endurance of 20,000 cycles. The operational voltage is rated at 240VAC, with an insulation voltage of 500VAC and an impulse withstand voltage of 6kV.

Installation is simplified by its clip-on design for DIN rail mounting and a width of 8 pitches (72mm). The device operates within a temperature range of -30°C to 70°C and has a storage temperature ranging from -40°C to 80°C. Its IP20 protection rating safeguards the terminals from foreign objects, complying with IEC/EN 60529 standards. The product is light grey in color (RAL7035) and features a pollution degree of 3.
