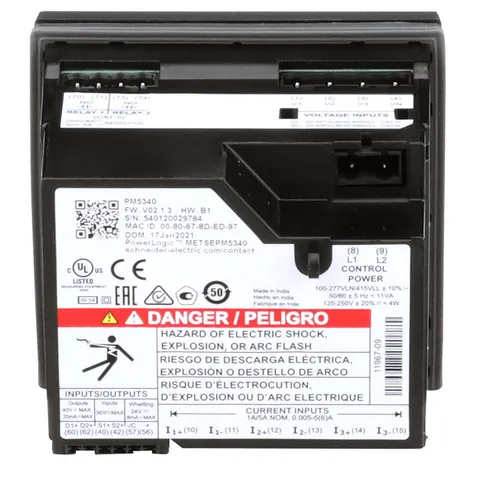

METSEPM5340

Additional Information

Part Number

METSEPM5340

UNSPSC

41113708

Tariff Code

9030333800

Country of Origin

IN

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1305025

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1305025

Eu Rohs Directive

Compliant with Exemptions

Complementary

Network Frequency

60 Hz || 50 Hz

Communication Port Support

ETHERNET

Power Quality Analysis

up to the 31st harmonic

Height

96 mm

Measurement Voltage

35-760 V AC 45...65 Hz between phases || 20-400 V AC 45...65 Hz between phase and neutral

Sampling Rate

64 samples/cycle

Memory Capacity

256 kB

Number Of Outputs

2 relay || 2 digital

Standards

EN 50470-1 || IEC 62053-24 || IEC 60529 || UL 61010-1 || IEC 62053-22:2020 || EN 50470-3 || IEC 61557-12:2015 || IEC 62053-23:2020 || IEC 62052-11:2020 || IEC 62052-31:2015

Product Certifications

CE IEC 61010-1 || cULus UL 61010-1

Type Of Measurement

current || voltage || frequency || power factor || energy || active and reactive power

Communication Port Protocol

Modbus TCP/IP 10/100 Mbit/s 2500 V || BACnet IP

Frequency Measurement Range

45-65 Hz

Ride-Through Time

100 ms 120 V AC typical || 400 ms 230 V AC typical || 50 ms 125 V DC typical

Display Resolution

128 x 128 pixels

Number Of Inputs

2 digital

Net Weight

430 g

Depth

72 mm

Measurement Current

5-9000 mA

Connections - Terminals

voltage circuit screw terminal block4 || control circuit screw terminal block2 || current transformer screw terminal block6 || input/output circuit screw terminal block6 || relay output screw terminal block4 || Ethernet network RJ45 connector

Information Displayed

tariff 4)

[Us] Rated Supply Voltage

90...450 V AC 45...65 Hz || 100...300 V DC

Mounting Mode

flush-mounted

Measurement Accuracy

active energy +/- 0.5 % || reactive energy +/- 2 % || active power +/- 0.5 % || apparent power +/- 0.5 % || frequency +/- 0.05 % || power factor +/- 0.5 || current +/- 0.5 % || voltage +/- 0.5 % || apparent energy +/- 0.5 % || reactive power +/- 2 %

Mounting Support

framework

Poles Description

3P || 1P + N || 3P + N

Data Recording

data logs || alarm logs || time stamping || event logs || min/max of instantaneous values || maintenance logs

Line Rated Current

5 A || 1 A

Analogue Input Type

voltage (impedance 10 MOhm) || current (impedance <= 0.3 mOhm)

Width

96 mm

Display Type

monochrome graphic LCD

Device Application

multi-tariff || power monitoring

Accuracy Class

class 0.5S active energy IEC 62053-22

Maximum Power Consumption In Va

11 VA 415 V

Specifications

Product Or Component Type

power meter

Product Name

PowerLogic PM5000

Range

PowerLogic

Device Short Name

PM5340

Environment

Ambient Air Temperature For Operation

-25-70 °C meter || -20-70 °C display || -25--20 °C with reduced performance) display

Electromagnetic Compatibility

limits for harmonic current emissions class A conforming to IEC 61000-3-2 || electrostatic discharge level 4 conforming to IEC 61000-4-2 || conducted RF disturbances level 3 conforming to IEC 61000-4-6 || magnetic field at power frequency level 4 conforming to IEC 61000-4-8 || conducted and radiated emissions class B conforming to EN 55022

Pollution Degree

2

Ambient Air Temperature For Storage

-40-85 °C

Relative Humidity

5-95 % 50-50 °C non-condensing

Ip Degree Of Protection

display IP51 IEC 60529 || rear IP30 IEC 60529

Operating Altitude

<= 9842.52 ft (3000 m)
