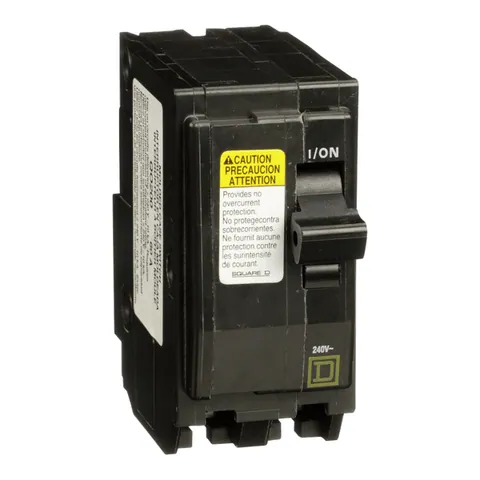

Schneider Electric
QO200
Mini switch, QO, 60A, 2 pole, 240VAC, 10kA, plug in mount
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Łącznie 2 części w magazynie od 1 dostawcy
Stan produktu:
Additional Information
- Part Number
- QO200
- UPC
- 785901371700
- UNSPSC
- 39121603
- Tariff Code
- 8536509065
- Country of Origin
- MX
Environment
- Product Certifications
- UL Listed || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Complementary
- Height
- 79 mm
- Tightening Torque
- 5-5 N.m 10-25 mm² (AWG 8...AWG 2)
- Number Of Spaces Required
- 2
- Net Weight
- 0.245 kg
- Breaking Capacity
- 10 kA 240 V AC 50/60 Hz
- Awg Gauge
- AWG 8...AWG 2 copper or aluminium
- Width
- 38 mm
- Depth
- 74 mm
Specifications
- Range Of Product
- QO
- Product Or Component Type
- switch
- Mounting Mode
- plug-in
- Poles Description
- 2P
- Electrical Connection
- box lugs
- Line Rated Current
- 60 A
- [Ue] Rated Operational Voltage
- 240 V AC
Dokumenty
Data Sheet
