Schneider Electric
SXWDOA12H10001

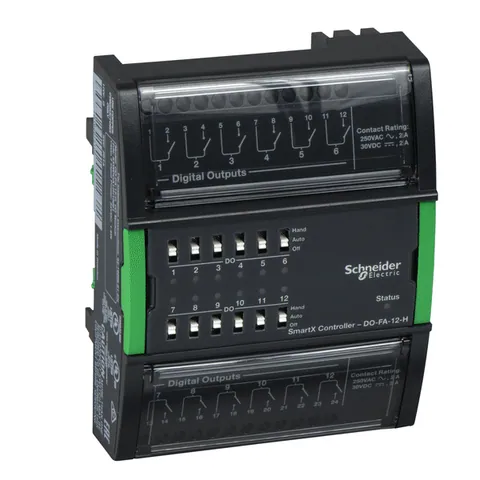

Central I/O module, SpaceLogic, 12 Form A digital outputs, hand control/override switches
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
2804,15 zł
1
Metody płatności:
Łącznie 4 części w magazynie od 9 dostawców
Stan produktu:
Oferta z czasem realizacji przez producenta
Wysyłka:1 - 2 Dni robocze
Najlepsza cena:
€477.45
Additional Information
- Part Number
- SXWDOA12H10001
- Country of Origin
- SE
Complementary
- Discrete Output Type
- triac
- Discrete Input Voltage
- 24 V
- Mounting Support
- wall || DIN rail
- Standards
- UL 864 || UL 916 || FCC CFR 47 part 15
- Range Compatibility
- EcoStruxure Building Operation TB-IO-W1 terminal base
- Local Signalling
- LED green) relay energised
- Control Type
- with integrated switch for off/on/automatic
- Discrete Output Number
- 12
- Material
- ABS + PC
- Electrical Connection
- plug-in sub-base
Specifications
- Product Certifications
- ICES-003 || FCC part 15 class B || CE || RCM
- Product Brand
- Schneider Electric
- Ambient Air Temperature For Operation
- 0-50 °C
- Height
- 114 mm
- Product Or Component Type
- I/O module
- Product Name
- I/O Modules
- Net Weight
- 194 g
- Range
- EcoStruxure Building Operation
- Flame Retardance
- UL94V0-5VB
- Ambient Air Temperature For Storage
- -20-70 °C
- Power Consumption In Va
- 1.8 W
- Relative Humidity
- 0-95 % non-condensing
- Width
- 30 mm
- Depth
- 64 mm
- Device Short Name
- DO-FA-12-H
- Ip Degree Of Protection
- IP20
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1611005
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1611005
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free plastic parts & cables product
