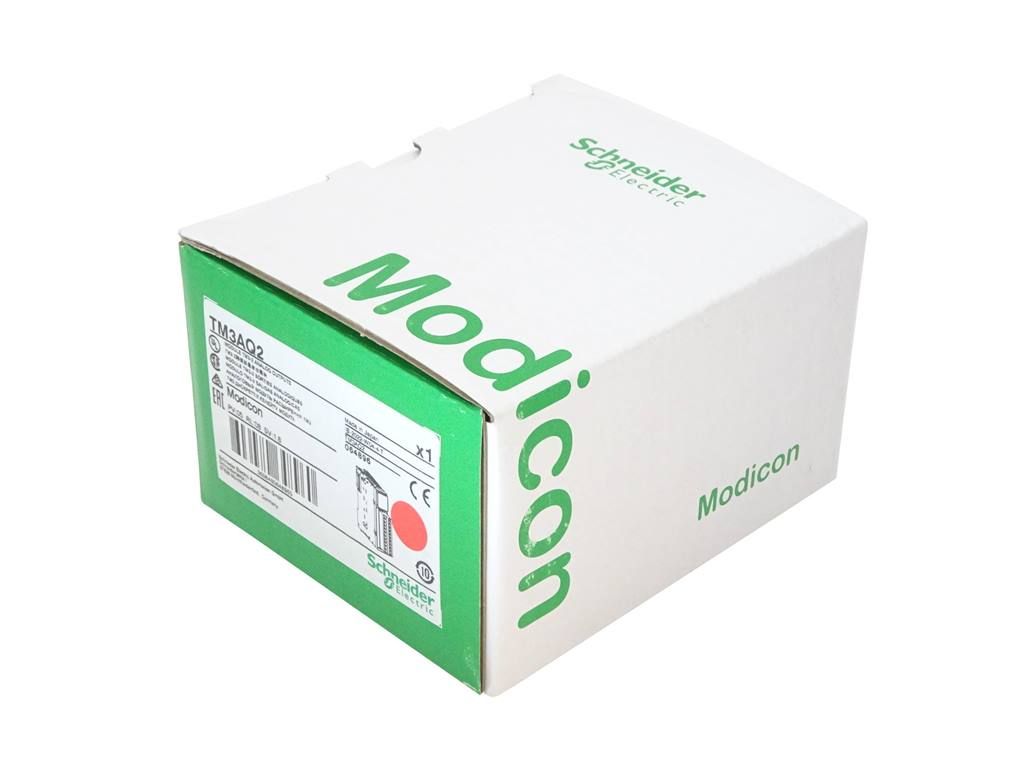

TM3AQ2

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1402009EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Toxic Heavy Metal Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1402009EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Electrical Connection

11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for outputs and supply

Height

90 mm

Load Type

resistive

Type Of Cable

twisted shielded pairs cable <30 m output

Non-Linearity

+/- 0.01 %FS

Lsb Value

2.44 mV 0...10 V voltage || 4.88 mV - 10...10 V voltage || 4.88 µA 0...20 mA current || 3.91 µA 4...20 mA current

Marking

CE

Net Weight

0.115 kg

Absolute Accuracy Error

+/- 0.1 % of full scale at 25 °C || +/- 1 % of full scale

Current Consumption

40 mA 5 V DC via bus connector full load || 35 mA 5 V DC via bus connector no load || 30 mA 24 V DC via external supply no load || 70 mA 24 V DC via external supply full load

Conversion Time

1 ms + 1 ms per channel + 1 controller cycle time

Analogue Output Resolution

11 bits + sign || 12 bits

Temperature Drift

+/- 0.006 %FS/°C

Supply Voltage Limits

20.4-28.8 V

Stabilisation Time

1 ms

Load Impedance Ohmic

1 kOhm voltage || 300 Ohm current

Output Ripple

20 mV

Mounting Support

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Local Signalling

for PWR 1 LED (green)

Surge Withstand

1 kV power supply common mode IEC 61000-4-5 || 0.5 kV power supply differential mode IEC 61000-4-5 || 1 kV output common mode IEC 61000-4-5

Cross Talk

<= 1 LSB

Width

23.6 mm

Depth

70 mm

[Us] Rated Supply Voltage

24 V DC

Insulation

between output and supply 1500 V AC || between output and internal logic 500 V AC

Repeat Accuracy

+/- 0.4 %FS

Environment

Product Certifications

CE || UKCA || RCM || EAC || cULus || cULus HazLoc

Resistance To Conducted Disturbances

10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3

Standards

IEC 61131-2

Immunity To Microbreaks

10 ms

Ambient Air Temperature For Operation

-10-55 °C horizontal installation || -10-35 °C vertical installation

Storage Altitude

0-3000 m

Pollution Degree

2

Shock Resistance

15 gn 11 ms

Resistance To Magnetic Fields

30 A/m IEC 61000-4-8

Vibration Resistance

3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail

Ambient Air Temperature For Storage

-25-70 °C

Relative Humidity

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Resistance To Electrostatic Discharge

8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2

Ip Degree Of Protection

IP20

Resistance To Fast Transients

1 kV IEC 61000-4-4 I/O)

Operating Altitude

0...6561.68 ft (0...2000 m)

Electromagnetic Emission

radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011

Specifications

Range Of Product

Modicon TM3

Analogue Output Type

current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V

Product Or Component Type

analog output module

Analogue Output Number

2

Range Compatibility

Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262
