Schneider Electric

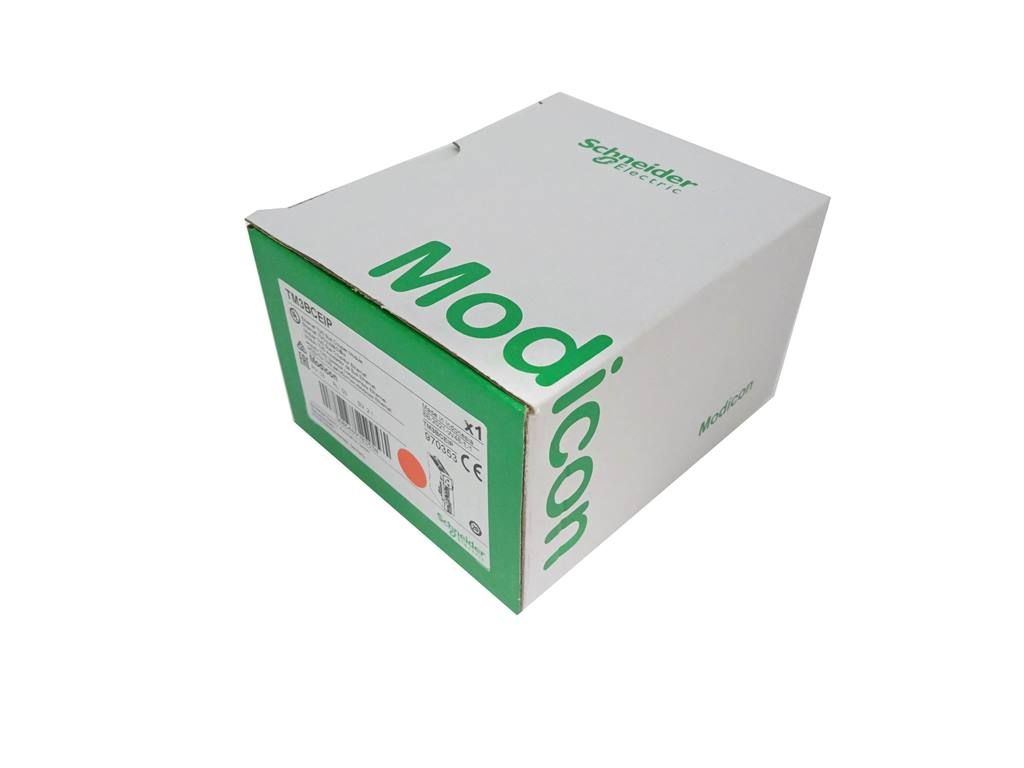

TM3BCEIP
distributed IO module, Modicon TM3, IP20 optimized bus coupler, Ethernet interface
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
€145.00
1
Metody płatności:
Łącznie 298 części w magazynie od 35 dostawców
Stan produktu:
Additional Information
- Part Number
- TM3BCEIP
- UNSPSC
- 32151702
- Tariff Code
- 8538908180
- Country of Origin
- ID
Complementary
- Product Certifications
- CE || cULus || EAC || RCM || UKCA || EU-RO MR
- Communication Network Type
- Ethernet IP || Modbus TCP || IPv4 (internet protocol)
- Height
- 96.5 mm
- Standards
- IEC 61131-2 || UL/CSA 61010-1 || UL/CSA 61010-2-201
- Connector Type
- RJ45 2 Ethernet daisy chain isolated || USB device port Mini-B
- Web Services
- web server, Ethernet || web server, USB
- Communication Service
- Ethernet/IP adapter || Modbus TCP/IP server || RSTP (Ring topology support) || SNMP || web server || DHCP client || BOOTP || address conflict detection || FTP server
- Exchange Mode
- half duplex, full duplex, autonegotiation
- Net Weight
- 0.10 kg
- Fixing Mode
- by clipping locks rail) || by screws mounting plate)
- Current Consumption
- 0.8 A 24 V DC internal supply maximum 7 expansion modules
- Topology
- daisy chain
- Communication Port Protocol
- Ethernet IP/Modbus TCP
- Local Signalling
- 1 LED green/red PWR (System Status) || 1 LED green/red MS (Module Status) || 1 LED green/red NS (Network Status) || 1 LED green/red I/O status
- Port Ethernet
- 10/100BASE-T
- Width
- 27 mm
- Transmission Rate
- 10/100 Mbit/s
- Depth
- 70 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1712005EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1712005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Storage Altitude
- 0-3000 m
- Pollution Degree
- 2
- Vibration Resistance
- 3M4 35 x 15 mm symmetrical DIN rail
- Ip Degree Of Protection
- IP20 conforming to IEC/EN 61010-2-201
- Ambient Air Temperature For Storage
- -25-70 °C
- Relative Humidity
- 10-95 % non-condensing
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
Specifications
- Range Of Product
- Modicon TM3
- Product Or Component Type
- I/O distributed module
- Product Specific Application
- bus coupler module
- Product Compatibility
- logic controller || motion controller
