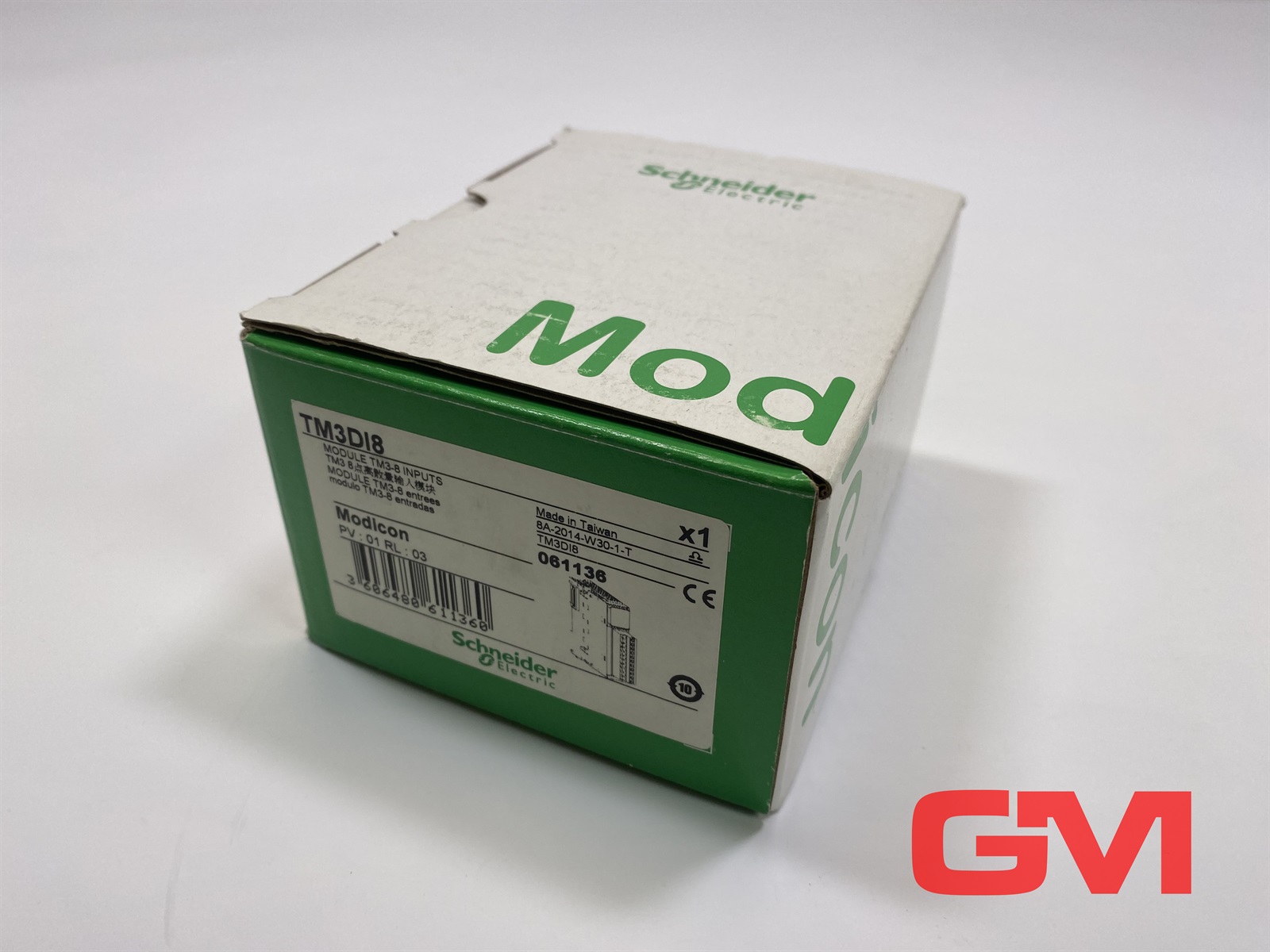

Schneider Electric
TM3DI8
discrete input module, Modicon TM3, 8 inputs, screw, 24V DC
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
€41.00
1
Metody płatności:
Łącznie 666 części w magazynie od 43 dostawców
Stan produktu:
Oferta z czasem realizacji przez producenta
Wysyłka:Na zapytanie
Najlepsza cena:
€37.95
Additional Information
- Part Number
- TM3DI8
- UNSPSC
- 32151705
- Tariff Code
- 8536904000
- Country of Origin
- TW
Complementary
- Input Impedance
- 3.4 kOhm
- Maximum Cable Distance Between Devices
- unshielded cable <30 m regular input
- Electrical Connection
- 11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for inputs
- Height
- 90 mm
- Discrete Input Voltage Type
- DC
- Current State 1 Guaranteed
- >= 2.5 mA input)
- Marking
- CE
- Response Time
- 4 ms (turn-on) || 4 ms (turn-off)
- Discrete I/O Number
- 8
- Net Weight
- 0.085 kg
- Voltage State 0 Guaranteed
- 0...5 V input
- Current Consumption
- 5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state on) || 0 mA 24 V DC via bus connector at state off) || 24 mA 5 V DC via bus connector at state on)
- Voltage State 1 Guaranteed
- 15...28.8 V input
- Current State 0 Guaranteed
- <= 1 mA input)
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Local Signalling
- for input status 1 LED per channel (green)
- Width
- 27.4 mm
- Depth
- 84.6 mm
- Insulation
- between input and internal logic 500 V AC || non-insulated between inputs
Specifications
- Discrete Input Logic
- sink or source (positive/negative)
- Range Of Product
- Modicon TM3
- Discrete Input Voltage
- 24 V
- Product Or Component Type
- discrete input module
- Discrete Input Current
- 7 mA input
- Range Compatibility
- Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
- Discrete Input Number
- 8 input IEC 61131-2 Type 1
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1402009EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1402009EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- CE || cULus || UKCA || RCM || EAC || cULus HazLoc
- Resistance To Conducted Disturbances
- 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Standards
- IEC 61131-2
- Ambient Air Temperature For Operation
- -10-35 °C vertical installation || -10-55 °C horizontal installation
- Storage Altitude
- 0-3000 m
- Pollution Degree
- 2
- Shock Resistance
- 15 gn 11 ms
- Resistance To Magnetic Fields
- 30 A/m 50/60 Hz IEC 61000-4-8
- Vibration Resistance
- 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
- Ambient Air Temperature For Storage
- -25-70 °C
- Relative Humidity
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Surge Withstand
- 1 kV I/O common mode IEC 61000-4-5 DC
- Ip Degree Of Protection
- IP20 with protective cover in place
- Resistance To Electrostatic Discharge
- 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Resistance To Fast Transients
- 1 kV I/OIEC 61000-4-4
- Electromagnetic Emission
- radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
