Schneider Electric VBF01

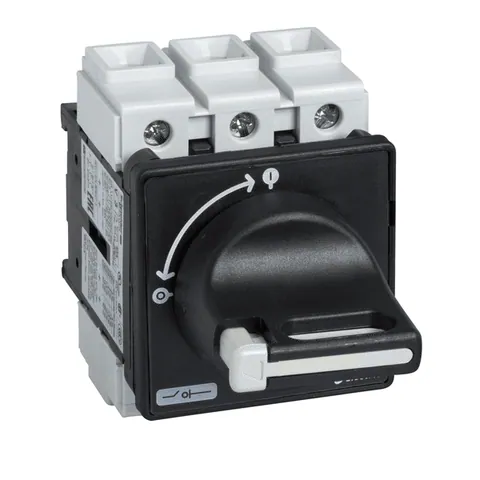

VBF01 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 5.5kW@400V AC-23. For door mounting with 4 screw fixing, it provides a black & grey operator with IP65 protection. VBF01 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 5.5kW@400V AC-23. It consists of a V01 Vario switch body and a padlockable black & grey operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V01 and a black & grey operator, for main switching, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ01), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).
