Schneider Electric
VW3A21212

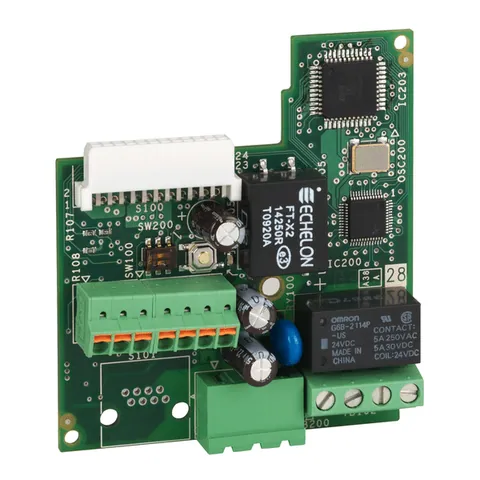

communication card LonWorks
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Łącznie 1 część w magazynie od 12 dostawców
Stan produktu:
Oferta z czasem realizacji przez producenta
Wysyłka:Na zapytanie
Najlepsza cena:
€92.49
Additional Information
- Part Number
- VW3A21212
- UNSPSC
- 39122001
- Tariff Code
- 8504909690
- Country of Origin
- CN
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Input Type
- multifunction programmable logic input F < 24 V DC 5 mA sink or source || multifunction programmable contact input R < 24 V DC 5 mA sink or source || multifunction programmable analog input VIB 10 V DC 30 kOhm
- Electrical Connection
- screw/spring terminal block
- Output Type
- multifunction programmable relay output FLA, FLB, FLC 250 V AC 1 A 1 || multifunction programmable relay output FLA, FLB, FLC 250 V AC 0.5 A 0.4 || multifunction programmable relay output FLA, FLB, FLC 30 V DC 0.5 A || power supply output P24 24 V DC 50 mA
- Electrical Connection
- screw terminal NETA, NETB LonWorks transmission/reception data || screw terminal SHLD LonWorks communication shield || screw terminal G/E grounding terminal || spring terminal F programmable logic input || spring terminal R programmable contact input || spring terminal VIB multifunction programmable analog input || spring terminal CC control circuit equipotential || spring terminal P24 power supply output || screw terminal FLA, FLB, FLC multifunction programmable relay output
- Net Weight
- 0.05 kg
Specifications
- Communication Port Protocol
- LonWorks
- Range Compatibility
- Altivar 212
- Product Or Component Type
- communication card
Contractual warranty
- Warranty
- 18 months
