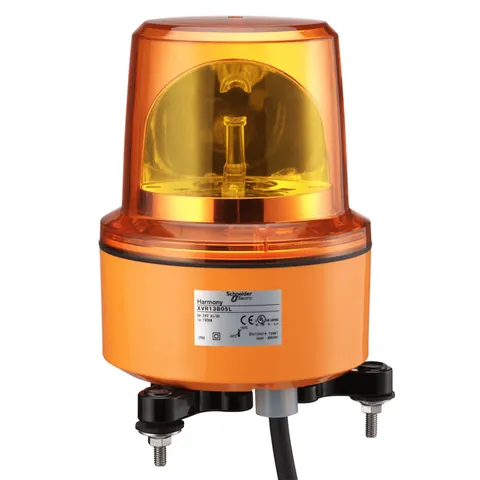

XVR13B05L

Additional Information

Part Number

XVR13B05L

UNSPSC

32151503

Tariff Code

8531809026

Country of Origin

ID

Environment

Ambient Air Temperature For Operation

-30-50 °C

Standards

EN/IEC 61000-6-2 || EN/IEC 61000-6-4

Ambient Air Temperature For Storage

-35-70 °C

Electrical Shock Protection Class

class II IEC 61140

Protective Treatment

TC

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Environmental Disclosure

ENVPEP1402018EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation

X

Circularity Profile

ENVEOLI1402018EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Clamping Connection Capacity

1.25 mm²

Flashing Frequency

2.7 Hz

Cable Length

400 mm

Marking

CE

Net Weight

0.82 kg

[Uimp] Rated Impulse Withstand Voltage

0.8 kV

Current Consumption

125 mA

Awg Gauge

AWG 18

Product Mounting

by 3 M6 screws

Material

ABS (acrylonitrile butadiene-styrene): body part || PC: globe

Cad Overall Width

130 mm

Cad Overall Depth

130 mm

Specifications

Range Of Product

Harmony XVR

Mounting Diameter

130 mm

Light Source

high luminosity LED, orange

Product Or Component Type

prewired rotating mirror beacon

Ip Degree Of Protection

IP66 IEC 60529 || IP67 IEC 60529

Sound Signalling

without

Device Short Name

XVR

[Us] Rated Supply Voltage

24 V AC/DC
