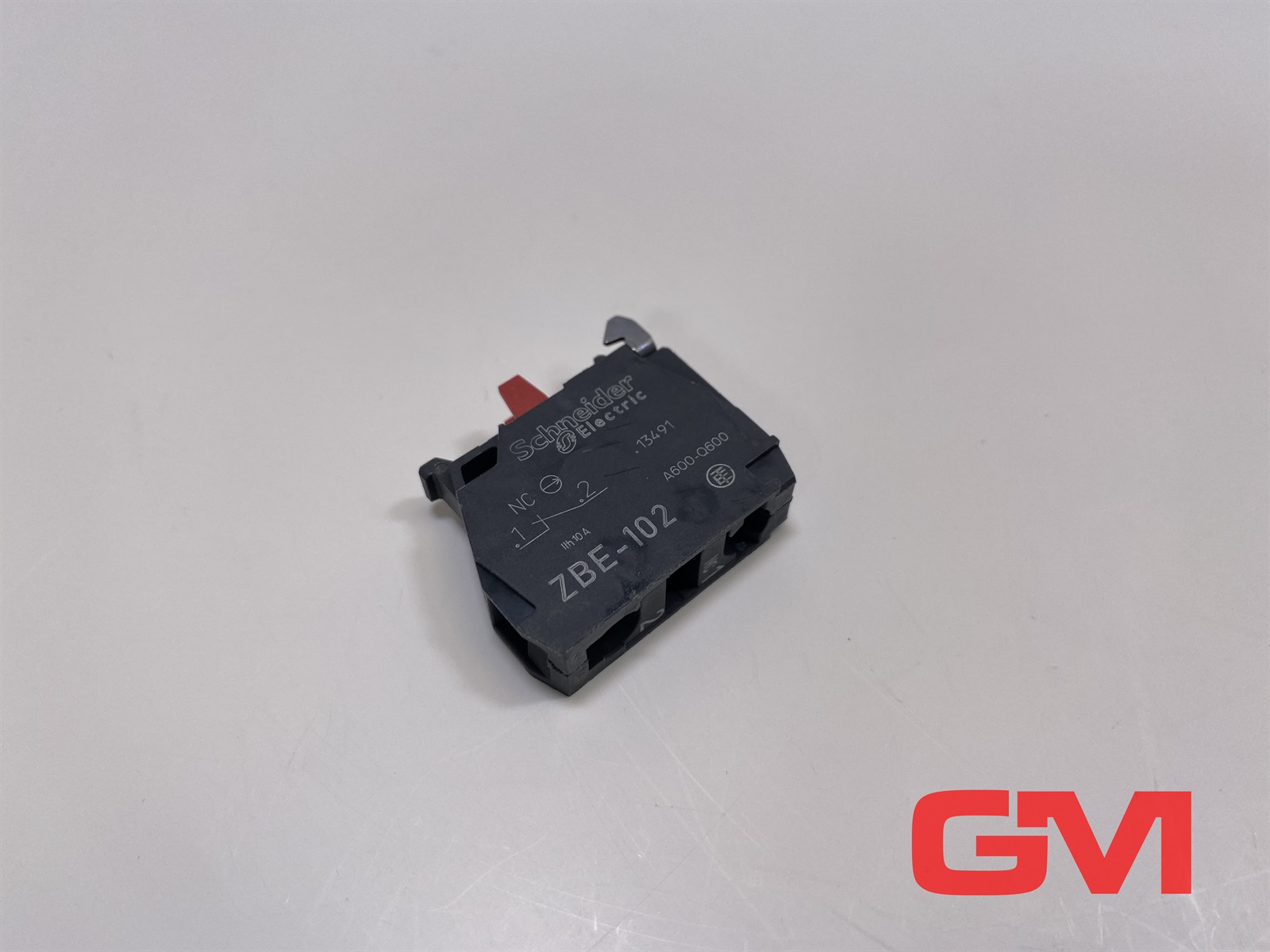

ZBE102

Additional Information

Part Number

ZBE102

UNSPSC

39121522

Tariff Code

8536509065

Country of Origin

FR

Environment

Product Certifications

CSA || GOST || BV || DNV || GL || LROS (Lloyds register of shipping) || CCC || UL

Ambient Air Temperature For Operation

-40-70 °C

Standards

EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1

Shock Resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Vibration Resistance

5 gn 2-500 Hz)IEC 60068-2-6

Ambient Air Temperature For Storage

-40-70 °C

Protective Treatment

TH

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1808008EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1808008EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Mounting Of Block

front mounting

Contacts Type And Composition

1 NC

Operating Force

2 N NC changing electrical state

Short-Circuit Protection

10 A cartridge fuse gG EN/IEC 60947-5-1

Operating Travel

1.5 mm NC changing electrical state) || 4.3 mm total travel)

Contacts Material

silver alloy (Ag/Ni)

Positive Opening

with EN/IEC 60947-5-1 appendix K

Electrical Composition Code

C1 9 ) || C2 7 ) || C3 6 ) || C4 4 ) || C5 5 ) || C6 3 ) || C7 4 ) || C8 2 ) || C9 3 ) || C12 6 ) || M1 6 ) || M2 4 ) || M3 4 ) || M5 2 ) || M6 2 ) || M7 6 ) || M8 4 ) || M9 2 ) || SF1 3 ) || SF2 2 ) || MF1 2 ) || MF2 2 ) || C10 2 ) || M4 2 ) || C13 1 )

[Ith] Conventional Free Air Thermal Current

10 A EN/IEC 60947-5-1

Net Weight

0.011 kg

[Uimp] Rated Impulse Withstand Voltage

6 kV EN 60947-1

Device Presentation

basic element

Electrical Durability

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

[Ui] Rated Insulation Voltage

600 V 3)EN 60947-1

[Ie] Rated Operational Current

3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

Mechanical Durability

10000000 cycles

Tightening Torque

0.8-1.2 N.m EN 60947-1

Shape Of Screw Head

cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Specifications

Contacts Usage

standard contacts

Range Of Product

Harmony XB4 || Harmony XB5

Contact Block Type

single

Product Or Component Type

contact block

Ip Degree Of Protection

IP20 IEC 60529

Connections - Terminals

screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1

Sale Per Indivisible Quantity

5

Contact Operation

slow-break

Device Short Name

ZBE
