Siemens
3RK3111-1AA10

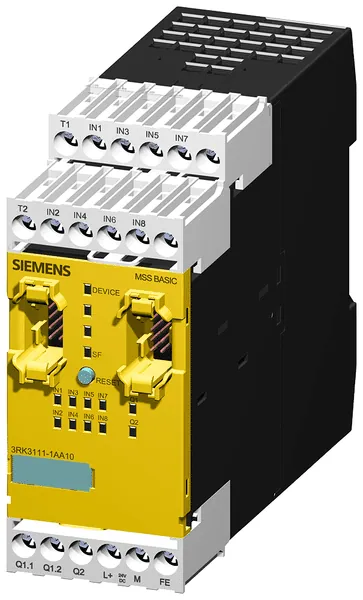

MSS CENTRAL MODULE, SCREW TERM
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
$595.74
1
Metody płatności:
Łącznie 22 części w magazynie od 27 dostawców
Stan produktu:
Oferta z czasem realizacji przez producenta
Wysyłka:Na zapytanie
Najlepsza cena:
€619.82
Opis
Końcówka SeriiZgodny z RoHS
SIRIUS, central unit 3RK3 basic for modular safety system 3RK3 4/8 f-di,1f-ro,1 f-do,24 V DC parameterizable using software safety es 45 mm width screw terminal up to sil3 (iec 61508) up to performance level e (iso 13849-1)Additional Information
- Part Number
- 3RK3111-1AA10
- UPC
- 754554961927
- Tariff Code
- 8537109170
- Country of Origin
- DE
- ETIM
- Group Code : EG000019
- Group Description : Relays
- Class Description : Device for monitoring of safety-related circuits
- Class Code : EC001449
- Version : 7
Specifications
- Width
- 45 mm
- Country of Origin
- DE
- Depth
- 124 mm
- Height
- 111 mm
- EFDE0031
- true
- Model
- Basic device
- With detachable clamps
- true
- SIL according to IEC 61508
- 3
- Voltage type for actuating
- DC
- Stop category acc. IEC 60204
- 0 + 1
- With approval according to UL
- true
- Suitable for monitoring of valves
- true
- Rated control supply voltage Us at DC
- 24 V
- Type of electric connection
- Screw connection
- Performance level acc. EN ISO 13849-1
- Level e
- Suitable for monitoring of position switches
- true
- Suitable for monitoring of proximity switches
- true
- Suitable for monitoring of emergency-stop circuits
- true
- Number of outputs, safety related, undelayed, with contact
- 0
- Number of outputs, safety related, undelayed, semiconductors
- 1
- Suitable for monitoring of optoelectronic protection equipment
- true
