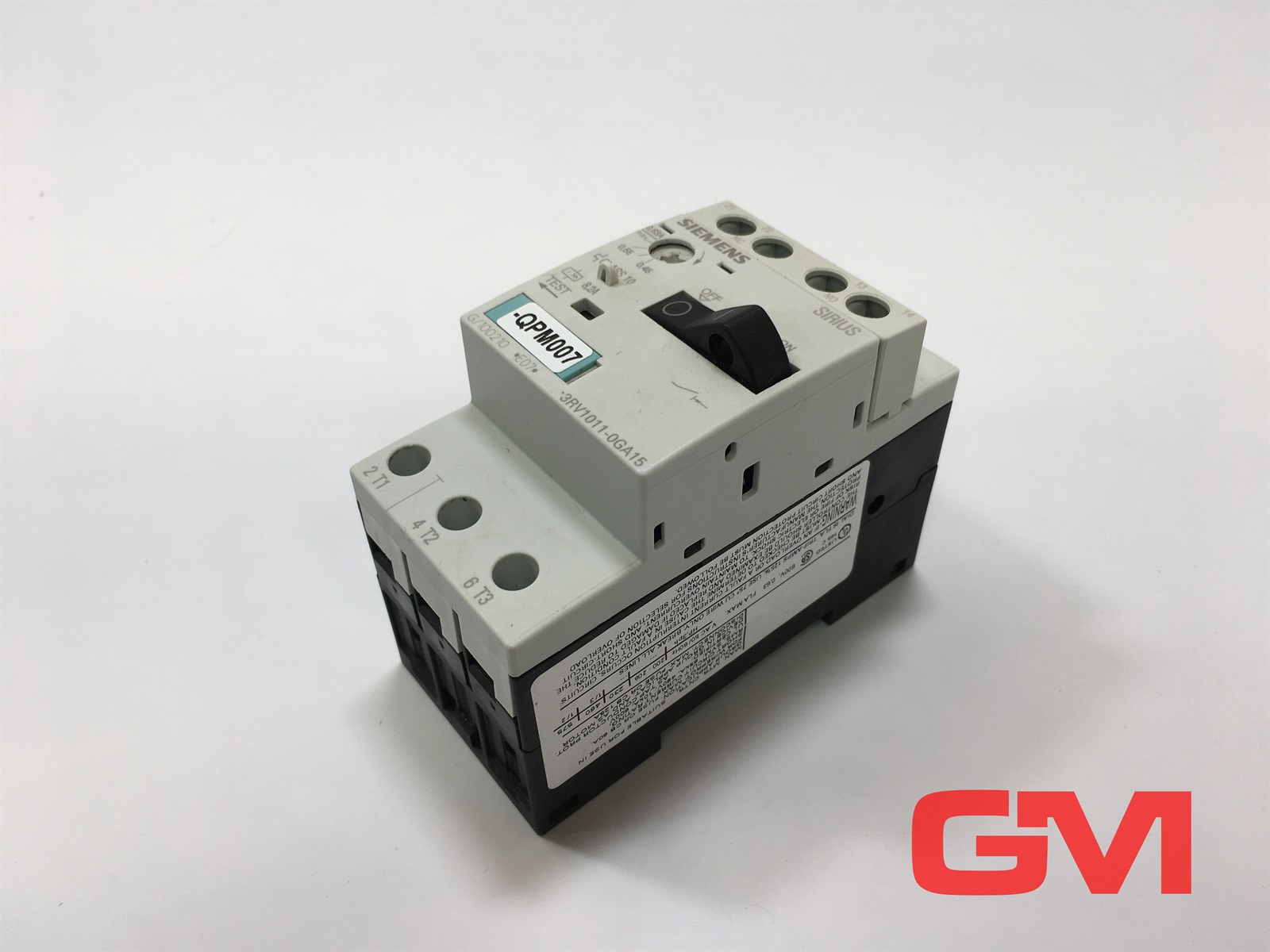

Siemens 3RV1011-0GA15

The Circuit Breaker Size S00 is intended for protecting motors and operates within a Class 10 A-release range of 0.45 to 0.63 A. It is equipped with a standard breaking capacity rated for 8.2 A N-release. The device features a screw connection type for ease of installation.

This breaker has a total of three poles and is sensitive to phase failure, ensuring reliable operation. The integrated auxiliary switch includes one normally open (NO) and one normally closed (NC) contact, enhancing its functionality in various applications. The protection type is rated at IP20, making it suitable for indoor environments.

The product operates with a magnetic release system and utilizes a rocker button for manual operation. Notably, it supports a maximum rated operating voltage of 690 volts and has a rated permanent current (Iu) of 1 ampere. The power loss per pole when current-dependent is measured at 1.8 watts, calculated at a rated current of 1 ampere.

With a rated service short-circuit breaking capacity of 100,000 amperes at 400 V and 50 Hz, this circuit breaker is designed for high-performance applications. It is not suitable for mounting on standard rails and does not include an integrated undervoltage tripper.
