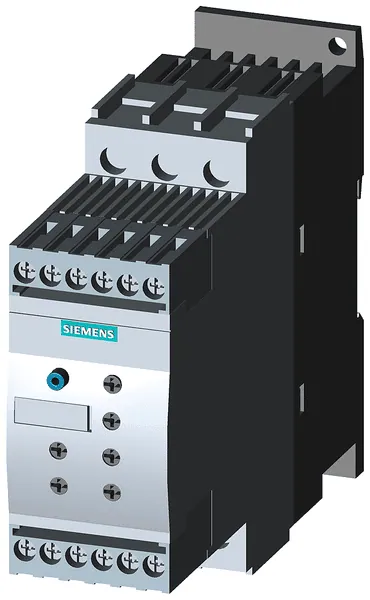

3RW4026-1BB04
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Opis
Additional Information
- Part Number
- 3RW4026-1BB04
- UPC
- 754554958576
- Tariff Code
- 8537109170
- Country of Origin
- CZ
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Soft starter
- Class Code : EC000640
- Version : 7
Specifications
- Release class
- Other
- Internal bypass
- true
- Country of Origin
- CZ
- Function
- Single direction
- Degree of protection (IP)
- IP20
- Rated operating voltage Ue
- 200 V
- Voltage type for actuating
- AC/DC
- Integrated motor overload protection
- true
- Rated control supply voltage Us at DC
- 24 V
- Rated control supply voltage Us at AC 50HZ
- 24 V
- Rated control supply voltage Us at AC 60HZ
- 24 V
- Rated operation current Ie at 40 °C Tu
- 25 A
- Rated power three-phase motor, inline, at 400 V
- 11 kW
- Rated power three-phase motor, inline, at 230 V
- 5.5 kW
- Rated surrounding temperature without derating
- 40 °C
Modele CAD
Powiązane produkty
Dodatkowe informacje
The 3RW40261BB04 from Siemens is a robust and powerful soft starter that is designed for industrial automation applications. This soft starter is designed to provide smooth and consistent starting and stopping of heavy machinery and is suitable for a variety of different load types, including three-phase motors.
The 3RW40261BB04 is equipped with a number of advanced features and functions, allowing it to provide superior control and performance. It is equipped with a built-in LCD display that allows users to easily monitor and adjust motor operating parameters. Additionally, this soft starter is compatible with both traditional and modern communication protocols, allowing it to be easily connected to other industrial automation systems.
The 3RW40261BB04 also includes several built-in protection features to ensure the safety and reliability of the motor. These features include overload protection, short circuit protection, and stall protection, all of which can be adjusted to meet the specific needs of the application. Additionally, this soft starter is designed to be able to withstand extreme temperatures and vibrations, making it suitable for use in harsh industrial environments.
