Siemens
3SK1122-1AB40
SAFETY RELAY ADV ELECT. 3+1, 24VDC, SCW
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
$526.50
1
Metody płatności:
Łącznie 36 części w magazynie od 25 dostawców
Stan produktu:
Oferta z czasem realizacji przez producenta
Wysyłka:Na zapytanie
Najlepsza cena:
€92.07
Opis
AktywnyZgodny z RoHS

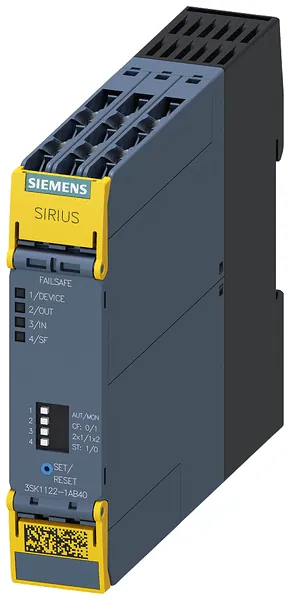

SIRIUS safety relay basic unit advanced series 3 solid-state enabling circuits 1 solid-state signaling circuit, us = 24 V DC screw terminalAdditional Information
- Part Number
- 3SK1122-1AB40
- UPC
- 887621548964
- Tariff Code
- 8536490065
- Country of Origin
- DE
- ETIM
- Group Code : EG000019
- Group Description : Relays
- Class Description : Device for monitoring of safety-related circuits
- Class Code : EC001449
- Version : 7
Specifications
- Model
- Other
- Height
- 100 mm
- Width
- 22.5 mm
- Depth
- 121.6 mm
- EFDE0031
- true
- With start input
- true
- With feedback circuit
- true
- SIL according to IEC 61508
- 3
- Voltage type for actuating
- DC
- Stop category acc. IEC 60204
- 0
- With approval according to UL
- true
- Evaluation inputs
- One- and two-channel
- Rated control supply voltage Us at DC
- 24 V
- Type of electric connection
- Screw connection
- Performance level acc. EN ISO 13849-1
- Level e
- Suitable for monitoring of magnetic switches
- true
- Suitable for monitoring of position switches
- true
- Suitable for monitoring of emergency-stop circuits
- true
- Number of outputs, safety related, delayed, with contact
- 0
- Number of outputs, safety related, undelayed, with contact
- 0
- Number of outputs, safety related, undelayed, semiconductors
- 3
- Number of outputs, signalling function, delayed, with contact
- 0
- Number of outputs, signalling function, undelayed, with contact
- 0
- Number of outputs, signalling function, undelayed, semiconductors
- 1
- Suitable for monitoring of optoelectronic protection equipment
- true
- Country of Origin
- DE
