Siemens
6AG1315-2EH14-7AB0

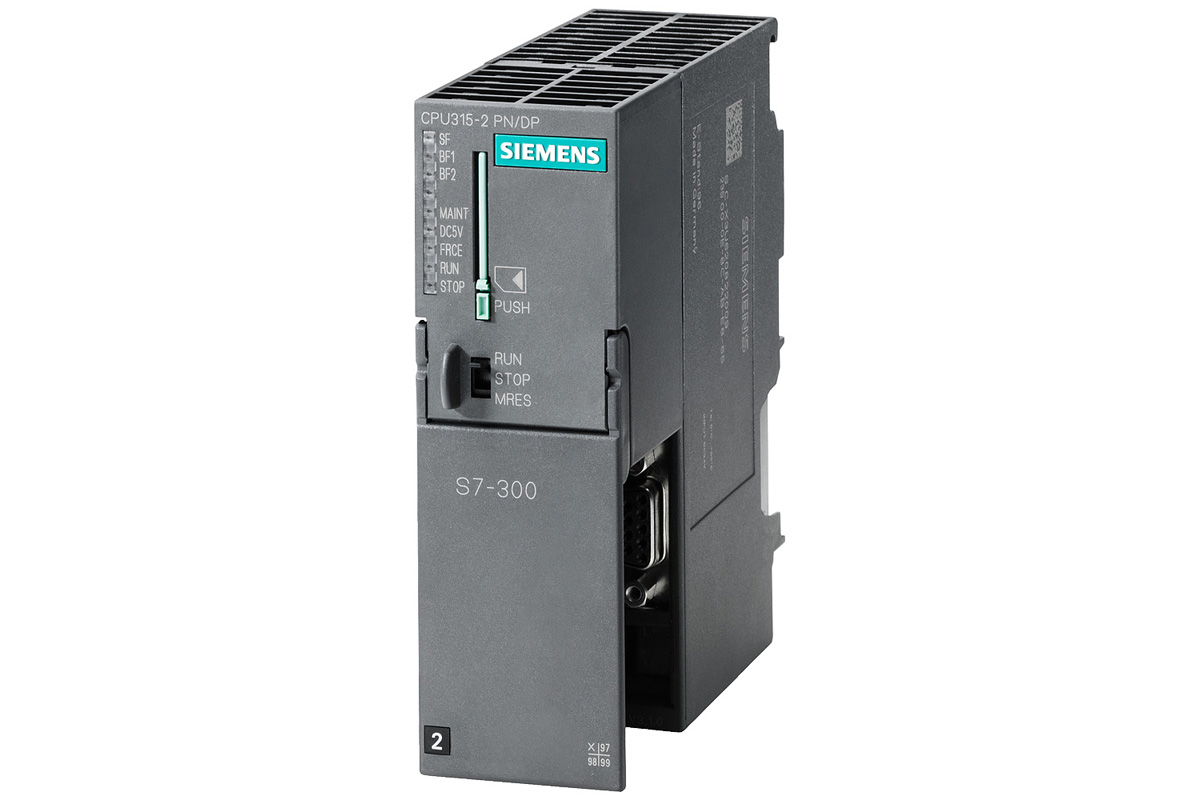

SIPLUS S7-300 CPU315-2PN/DP
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
€4,288.90
1
Metody płatności:
Łącznie 20 części w magazynie od 25 dostawców
Stan produktu:
Opis
AktywnyZgodny z RoHS
SIPLUS S7-300 CPU315-2PN/DP -25 ... +70 DEGREES C WITH CONFORMAL COATING BASED ON 6ES7315-2EH14-0AB0 . CENTRAL PROCESSING UNIT WITH 384 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE ETHERNET PROFINET, WITH 2 PORT SWITCH, MICRO MEMORY CARD NECESSARYAdditional Information
- Part Number
- 6AG1315-2EH14-7AB0
- UPC
- 040892604344
- Tariff Code
- 8538903000
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : PLC CPU-module
- Class Code : EC000236
- Version : 7
Specifications
- Country of Origin
- DE
- Width
- 40 mm
- Depth
- 130 mm
- Height
- 125 mm
- Model
- Modular
- Redundancy
- true
- Type of memory
- RAM
- Memory size
- 384 kByte
- System accessory
- true
- Supply voltage DC
- 20.4 V
- Number of relay outputs
- 0
- Number of digital inputs
- 0
- Number of analogue inputs
- 0
- Number of digital outputs
- 0
- Rail mounting possible
- true
- Number of analogue outputs
- 0
- Number of HW-interfaces USB
- 0
- Number of HW-interfaces other
- 1
- Number of interfaces PROFINET
- 1
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 1
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Supporting protocol for MODBUS
- true
- Supporting protocol for TCP/IP
- true
- Supporting protocol for PROFIBUS
- true
- Explosion safety category for dust
- None
- Supporting protocol for PROFINET IO
- true
- Supporting protocol for PROFINET CBA
- true
- Number of HW-interfaces industrial Ethernet
- 1
- Processing time (1K, binary operation)
- 0.05 ms
- Supporting protocol for other bus systems
- true
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
