6AV2123-2MB03-0AX0
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Współpracujemy z ponad 120 firmami naprawczymi w Europie, aby uzyskać najlepszą ofertę.
Możesz naprawić 6AV2123-2MB03-0AX0 za:
Opis
Additional Information
- Part Number
- 6AV2123-2MB03-0AX0
- UPC
- 887621895433
- Tariff Code
- 8537109170
- Country of Origin
- CN
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Graphic panel
- Class Code : EC001412
- Version : 7
Specifications
- Country of Origin
- CN
- With recipes
- true
- Built-in depth
- 60 mm
- Type of display
- TFT
- Screen diagonal
- 12 inch
- Supply voltage DC
- 19.2 V
- Width of the front
- 330 mm
- With colour display
- true
- Height of the front
- 245 mm
- Number of system buttons
- 0
- With numeric keyboard
- true
- Number of buttons with LED
- 0
- Number of password levels
- 50
- With message indication
- true
- Number of HW-interfaces USB
- 1
- Number of online languages
- 10
- Number of pixels, vertical
- 800
- Operation temperature
- 0 °C
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 1
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- With alpha numeric keyboard
- true
- Number of pixels, horizontal
- 1280
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Supporting protocol for MODBUS
- true
- Supporting protocol for TCP/IP
- true
- Number of HW-interfaces serial TTY
- 0
- Number of colours of the display
- 65536
- Supporting protocol for EtherNet/IP
- true
- Degree of protection (IP), front side
- IP65
- Number of function buttons, programmable
- 10
- Process default value (input) possible
- true
- Useful project memory/user memory
- 10000 kByte
- Number of HW-interfaces industrial Ethernet
- 1
- Number of grey-scales/blue-scales of display
- 0
- Supporting protocol for other bus systems
- true
- Process value representation (output) possible
- true
- With message system (incl. buffer and confirmation)
- true
Modele CAD
Dodatkowe informacje

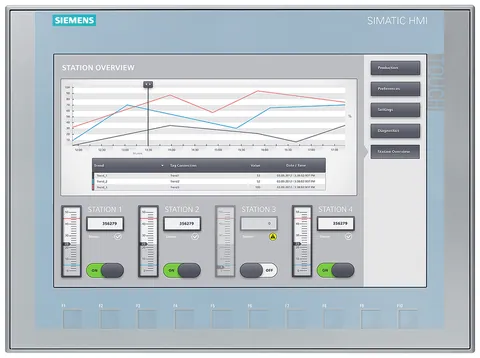

6AV21232MB030AX0 from Siemens is a Touch Panel HMI (Human Machine Interface), which is a central element in industrial automation. It allows operators to interact with a machine or system, providing real-time feedback and control. This device is designed for installation in harsh environments as it is IP65 rated with a resistive touchscreen, making it dust-tight and protected from water jets.
The 6AV21232MB030AX0 features a 12.1-inch color TFT display with a resolution of 1024 x 768 pixels and a brightness of 400cd/m2. It is equipped with a powerful ARM Cortex A8 processor, 64MB of RAM, 512MB of internal storage, and a wide range of communication ports. It also supports a variety of operating systems, including Windows CE, Windows XP, and Windows 7.
The 6AV21232MB030AX0 provides a robust, reliable and secure platform for a variety of industrial automation applications. It is designed to be reliable and durable, with an operating temperature range of -20°C to +60°C and vibration resistance of up to 5G. It is also equipped with a wide range of software and tools to simplify the development of industrial automation applications. This makes it an ideal choice for any industrial automation application.
