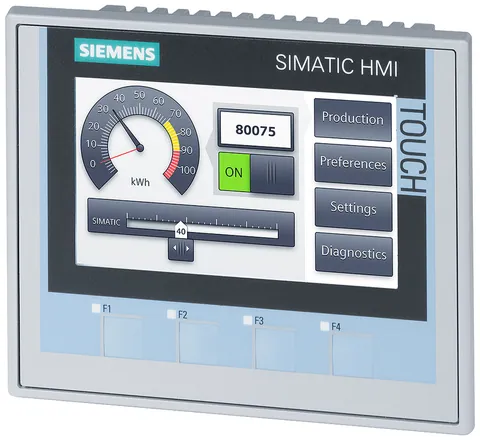

6AV2124-2DC01-0AX0
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Opis
Additional Information
- Part Number
- 6AV2124-2DC01-0AX0
- UPC
- 040892694307
- Tariff Code
- 8537109160
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Graphic panel
- Class Code : EC001412
- Version : 7
Specifications
- With recipes
- true
- Built-in depth
- 49 mm
- Type of display
- TFT
- Screen diagonal
- 4.3 inch
- Supply voltage DC
- 19.2 V
- Width of the front
- 140 mm
- With colour display
- true
- With printer output
- true
- Height of the front
- 116 mm
- Number of system buttons
- 0
- With numeric keyboard
- true
- Number of buttons with LED
- 4
- Number of password levels
- 50
- With message indication
- true
- Number of HW-interfaces USB
- 1
- Number of online languages
- 32
- Number of pixels, vertical
- 272
- Operation temperature
- 0 °C
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 1
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 1
- Number of HW-interfaces RS-485
- 1
- Number of pixels, horizontal
- 480
- With alpha numeric keyboard
- true
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Supporting protocol for MODBUS
- true
- Supporting protocol for TCP/IP
- true
- Number of HW-interfaces serial TTY
- 0
- Supporting protocol for PROFIBUS
- true
- Supporting protocol for EtherNet/IP
- true
- Supporting protocol for PROFINET IO
- true
- Number of colours of the display
- 16777216
- Degree of protection (IP), front side
- IP65
- Number of function buttons, programmable
- 4
- Process default value (input) possible
- true
- Useful project memory/user memory
- 4000 kByte
- Additional software components, loadable
- true
- Number of HW-interfaces industrial Ethernet
- 1
- Number of grey-scales/blue-scales of display
- 0
- Supporting protocol for other bus systems
- true
- Process value representation (output) possible
- true
- With message system (incl. buffer and confirmation)
- true
- Country of Origin
- DE
Modele CAD
Powiązane produkty
Dodatkowe informacje
The 6AV21242DC010AX0 is a Siemens industrial automation product designed for use in controlling and monitoring industrial machinery. This product is a part of the Simatic HMI Comfort Panel family and is a 10.4” touch display with a 800x600 resolution. It features a modern design with an integrated operating system, allowing for easy interaction and efficient operation. The display is also equipped with a variety of connection options, including four USB ports, a LAN port, and a serial port for connecting to external devices. Additionally, the display has three levels of brightness adjustment and a resistive touchscreen for easy operation and improved visibility.
The 6AV21242DC010AX0 is a great choice for a variety of industrial applications. It can be used to monitor and control a range of equipment, including motors, pumps, valves, and other industrial machinery. The display also provides a variety of diagnostic and maintenance functions, allowing users to quickly detect any potential problems with their equipment. Furthermore, the display is equipped with several safety features, including an emergency stop button and an integrated keypad for secure access.
The 6AV21242DC010AX0 has a number of features designed to ensure reliable operation. It is designed to withstand extreme temperatures, vibration, and shock, making it suitable for use in harsh industrial environments. The display is also certified to meet the requirements of a variety of international standards, such as EN 60204-1, EN 60529, and IEC 61508. In addition, the display has a wide operating temperature range and is rated IP65 for protection against dust and water ingress.
