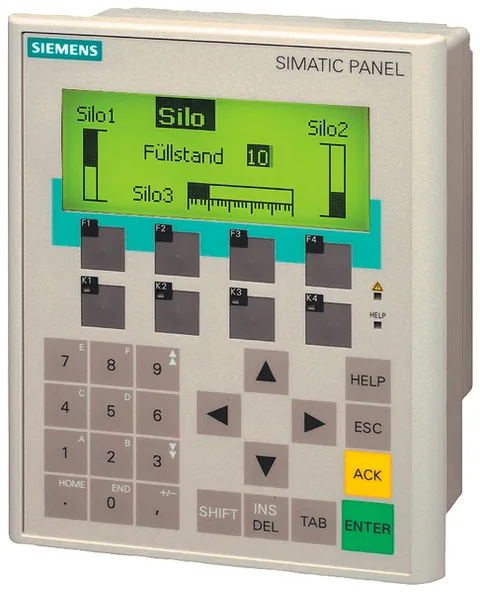

6AV6641-0CA01-0AX1

Additional Information

Part Number

6AV6641-0CA01-0AX1

UPC

662643342918

Country of Origin

DE

ETIM

Group Code : EG000024

Group Description : PLC's

Class Description : Graphic panel

Class Code : EC001412

Version : 7

Specifications

Country of Origin

DE

With recipes

true

Type of display

STN

Built-in depth

38.5 mm

Touch technology

None

Screen diagonal

4.5 inch

Supply voltage DC

20.4 V

Width of the front

150 mm

With printer output

true

Height of the front

186 mm

With numeric keyboard

true

Number of system buttons

23

Number of buttons with LED

4

Number of online languages

5

Number of password levels

50

With message indication

true

Number of HW-interfaces USB

1

Number of pixels, vertical

64

Operation temperature

0 °C

Number of HW-interfaces other

0

Number of interfaces PROFINET

0

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-422

1

Number of HW-interfaces RS-485

1

Number of pixels, horizontal

160

With alpha numeric keyboard

true

Voltage type of supply voltage

DC

Number of HW-interfaces Wireless

0

Number of HW-interfaces parallel

0

Number of colours of the display

2

Supporting protocol for MODBUS

true

Number of HW-interfaces serial TTY

0

Supporting protocol for PROFIBUS

true

Degree of protection (IP), front side

IP65

Degree of protection (NEMA), front side

12

Number of function buttons, programmable

8

Process default value (input) possible

true

Useful project memory/user memory

1000 kByte

Additional software components, loadable

true

Number of HW-interfaces industrial Ethernet

0

Number of grey-scales/blue-scales of display

0

Supporting protocol for other bus systems

true

Process value representation (output) possible

true

With message system (incl. buffer and confirmation)

true
