Siemens
6AV6644-0AC01-2AX1
MP377 19 TOUCH, 19 TFT, 12MB
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
€3,953.23
1
Metody płatności:
Łącznie 130 części w magazynie od 30 dostawców
Stan produktu:
Opis
Końcówka SeriiZgodny z RoHS

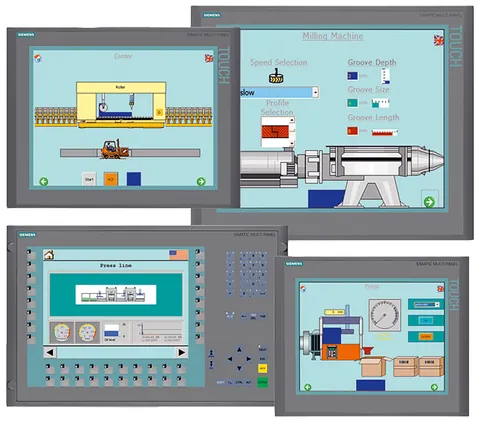

SIMATIC MP 377 19 TOUCH MULTIPANEL, WINDOWS CE 5.0 19 COLOR-TFT-DISPLAY 12 MB USER MEMORY CONFIGURABLE FROM WINCC FLEXIBLE 2007Additional Information
- Part Number
- 6AV6644-0AC01-2AX1
- UPC
- 040892549270
- Tariff Code
- 8537109160
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Graphic panel
- Class Code : EC001412
- Version : 7
Specifications
- With recipes
- true
- Built-in depth
- 75 mm
- Type of display
- TFT
- Screen diagonal
- 19 inch
- Supply voltage DC
- 20.4 V
- Width of the front
- 483 mm
- With colour display
- true
- With printer output
- true
- Height of the front
- 400 mm
- Number of system buttons
- 0
- With numeric keyboard
- true
- Number of buttons with LED
- 0
- Number of password levels
- 50
- With message indication
- true
- Number of HW-interfaces USB
- 2
- Number of online languages
- 16
- Operation temperature
- 0 °C
- Number of HW-interfaces other
- 1
- Number of interfaces PROFINET
- 2
- Number of pixels, vertical
- 1024
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 1
- Number of HW-interfaces RS-485
- 1
- Touch technology
- Resistive touch
- With alpha numeric keyboard
- true
- Number of pixels, horizontal
- 1280
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Supporting protocol for MODBUS
- true
- Supporting protocol for TCP/IP
- true
- Number of HW-interfaces serial TTY
- 0
- Supporting protocol for PROFIBUS
- true
- Number of colours of the display
- 65536
- Supporting protocol for EtherNet/IP
- true
- Supporting protocol for PROFINET IO
- true
- Degree of protection (IP), front side
- IP65
- Degree of protection (NEMA), front side
- 12
- Number of function buttons, programmable
- 0
- Process default value (input) possible
- true
- Useful project memory/user memory
- 12288 kByte
- Additional software components, loadable
- true
- Number of HW-interfaces industrial Ethernet
- 2
- Number of grey-scales/blue-scales of display
- 0
- Supporting protocol for other bus systems
- true
- Process value representation (output) possible
- true
- Country of Origin
- DE
- With message system (incl. buffer and confirmation)
- true
