Siemens 6AV7466-8MA02-0AA0

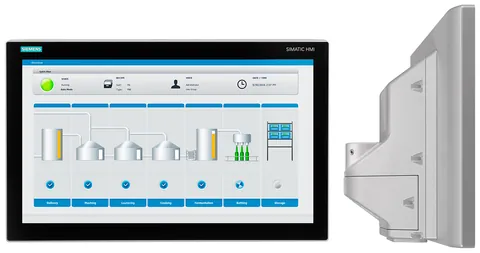

The IFP2200 PRO is a 22-inch TFT widescreen flat panel display, offering a resolution of 1920 x 1080 pixels. It supports multitouch functionality and is equipped with LED backlighting, ensuring a vibrant display with 16.7 million colors. This model is prepared for mounting on support arms and other expansion components, which enhances its versatility in various applications.

With an IP65 rating, the display is fully enclosed, providing protection against dust and water, making it suitable for industrial environments. It operates on a 24 V DC power supply, with a permissible voltage range from 19.2 V to 28.8 V. The ambient temperature range for operation is between 0 °C and 45 °C, ensuring reliability under varying conditions.

The integrated mouse cursor control allows for easy navigation, while the display's design incorporates a non-reflective and tempered mineral glass screen. It features two USB ports and a single RJ45 Ethernet interface for connectivity. Notably, the display can be tilted forward or backward up to 45 degrees, facilitating optimal viewing angles.

For installation, the IFP2200 PRO is compatible with VESA mounting, and its weight is 6.7 kg without packaging. This model adheres to various standards and approvals, including CE and UL certifications, ensuring compliance with safety regulations.
