Siemens

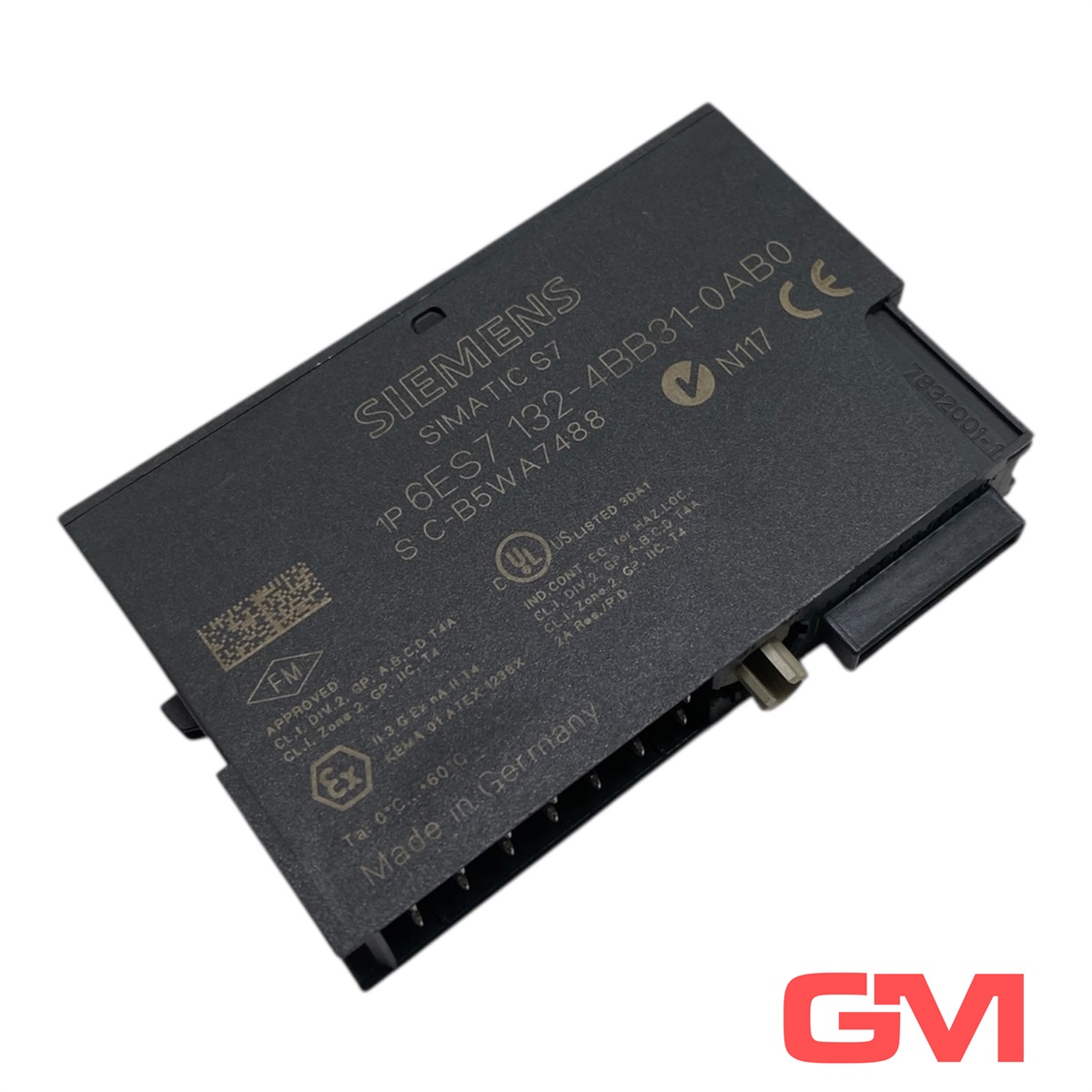

6ES7132-4BB31-0AB0
SIMATIC DP, 5 ELECTRON. MODULES
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
€174.00
1
Metody płatności:
Łącznie 955 części w magazynie od 43 dostawców
Stan produktu:
Oferta z czasem realizacji przez producenta
Wysyłka:Na zapytanie
Najlepsza cena:
€161.73
Opis
Końcówka SeriiZgodny z RoHS
SIMATIC dp, 5 electron. modules for et 200s, 2 do high feature DC 24v/2a, 15 mm width diagnosis f. short-circuit and open-circuit, first-up signal with led sf (group fault), 5 pieces per packaging unitAdditional Information
- Part Number
- 6ES7132-4BB31-0AB0
- UPC
- 662643216530
- Tariff Code
- 8538908180
- Country of Origin
- CN
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Fieldbus, decentr. periphery - digital I/O module
- Class Code : EC001599
- Version : 7
Specifications
- Country of Origin
- CN
- Depth
- 52 mm
- Width
- 15 mm
- Height
- 81 mm
- Output current
- 2 A
- System accessory
- true
- Supply voltage DC
- 20.4 V
- Type of output voltage
- DC
- Number of digital inputs
- 0
- Number of digital outputs
- 2
- Rail mounting possible
- true
- Type of digital output
- Other
- Number of HW-interfaces USB
- 0
- Degree of protection (IP)
- IP20
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 0
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Digital outputs configurable
- true
- Permitted voltage at output
- 17.4 V
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Time delay at signal exchange
- 0.1 ms
- Number of HW-interfaces serial TTY
- 0
- Explosion safety category for dust
- None
- Number of HW-interfaces industrial Ethernet
- 0
- Short-circuit protection, outputs available
- true
- Type of electric connection
- Screw-/spring clamp connection
- Fieldbus connection over separate bus coupler possible
- true
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
