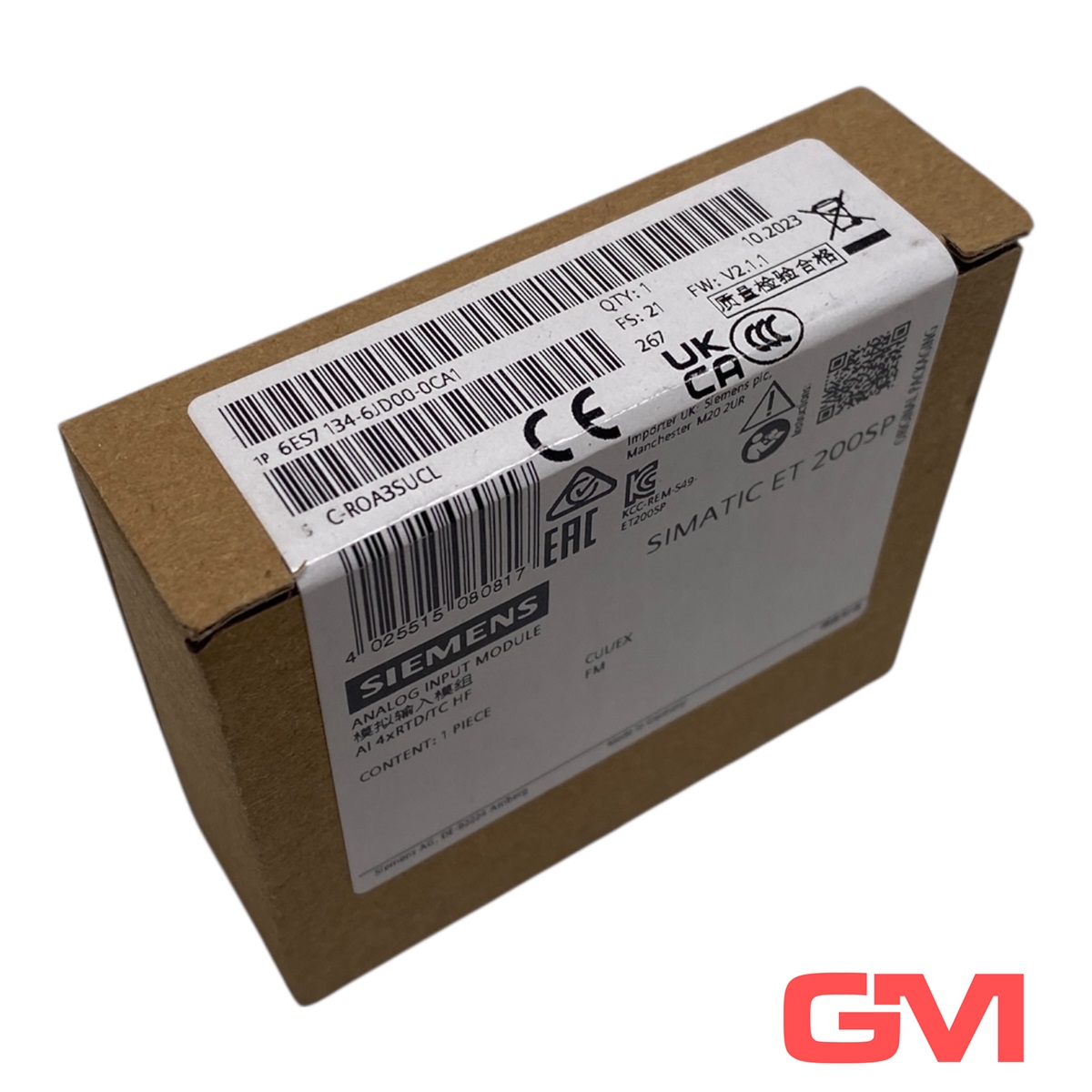

6ES7134-6JD00-0CA1
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Opis
Additional Information
- Part Number
- 6ES7134-6JD00-0CA1
- UPC
- 040892933529
- Tariff Code
- 8538908180
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Fieldbus, decentr. periphery - analogue I/O module
- Class Code : EC001596
- Version : 7
Specifications
- Brand
- SIMATIC
- Depth
- 58 millimetre
- Width
- 15 millimetre
- Height
- 73 millimetre
- Supply voltage type
- DC
- Protection type IP
- IP20
- Manufacturer name
- Siemens
- Number of analog inputs
- 4
- Number of analog outputs
- 0
- Input, voltage present
- true
- Rack-assembly possible
- true
- Input, resistance present
- true
- System components present
- true
- Front installation possible
- true
- Number of HW interfaces, other
- 0
- Analog inputs, configurable
- true
- Input, thermoelement present
- true
- Number of HW interfaces PROFINET
- 0
- Number of HW interfaces Wireless
- 0
- Number of HW interfaces parallel
- 0
- Min. supply voltage with DC
- 19 volt
- Input signal can be configured
- true
- Bearing track assembly possible
- true
- Manufacturer product family
- ET 200SP
- Number of HW interfaces serial TTY
- 0
- Max. supply voltage with DC
- 28.8 volt
- Resolution of the analog inputs
- 16 bit
- Number of HW interfaces serial RS232
- 0
- Number of HW interfaces serial RS422
- 0
- Number of HW interfaces serial RS485
- 0
- Input, resistance thermometer present
- true
- Manufacturer product root
- Analog module input
- Number of HW interfaces Industrial Ethernet
- 0
- Power loss, static, current-independent [Pls]
- 1 watt
- Description of product type
- AI 4xRTD/TC 2-/3-/4-wire HF
- Field bus connection possible via separate bus couplers
- true
- Explosion protection categories for gases
- ATEX gas-ex-protection, Cat. 3
- Country of Origin
- DE
Modele CAD
Powiązane produkty
Dodatkowe informacje
6ES71346JD000CA1 is a Siemens product from the industrial automation market. This is a Simatic S7-300 digital input module that is designed to be used in PLC-controlled applications. It has 8 input channels and is designed to be used in conjunction with the ET 200M distributed I/O system. It features a 24 V DC operating voltage and a current consumption of 10 mA.
The 6ES71346JD000CA1 digital input module is designed to support different types of digital signals such as ON/OFF, PNP/NPN, and contact closure signals. It is equipped with an LED indicator for each input channel for easy visual diagnostics. Additionally, this module has an integrated ESD protection circuit for increased safety and reliability.
The 6ES71346JD000CA1 digital input module is designed to operate in temperatures ranging from -25°C to +60°C, and it is equipped with a conformal coating for increased protection against dust and moisture. Additionally, this module is certified for use in hazardous locations, making it suitable for a wide range of industrial applications.
