Siemens
6ES7313-6BG04-0AB0
CPU 313C-2 PtP
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
£844.80
1
Metody płatności:
Łącznie 364 części w magazynie od 34 dostawców
Stan produktu:
Opis
AktywnyZgodny z RoHS

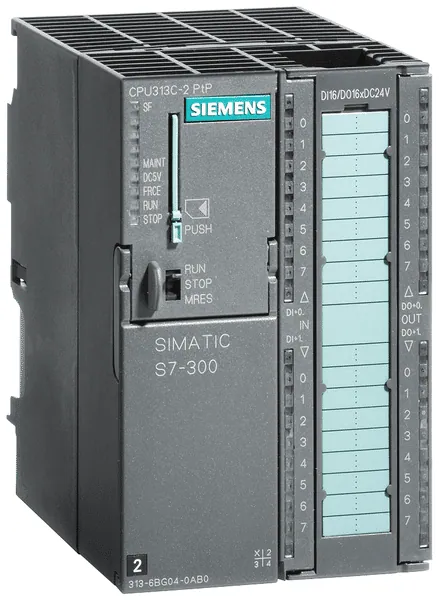

SIMATIC S7-300, CPU 313C-2 PTP Compact CPU with MPI, 16 DI/16 DO, 3 high-speed counters (30 kHz), integrated interface RS485, Integr. power supply 24 V DC, work memory 128 KB, Front connector (1x 40-pole) and Micro Memory Card requiredAdditional Information
- Part Number
- 6ES7313-6BG04-0AB0
- UPC
- 040892788570
- Tariff Code
- 8537109160
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : PLC CPU-module
- Class Code : EC000236
- Version : 7
Specifications
- Country of Origin
- DE
- Width
- 80 mm
- Depth
- 130 mm
- Height
- 125 mm
- Model
- Compact
- Redundancy
- true
- Type of memory
- RAM
- Memory size
- 128 kByte
- System accessory
- true
- Supply voltage DC
- 19.2 V
- Number of relay outputs
- 0
- Number of analogue inputs
- 0
- Number of digital inputs
- 16
- Rail mounting possible
- true
- Number of analogue outputs
- 0
- Number of digital outputs
- 16
- Number of HW-interfaces USB
- 0
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 0
- SIL according to IEC 61508
- None
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 1
- Number of HW-interfaces RS-485
- 1
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Explosion safety category for dust
- None
- Number of HW-interfaces industrial Ethernet
- 0
- Supporting protocol for other bus systems
- true
- Processing time (1K, binary operation)
- 0.069999999 ms
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
