6ES7517-3AP00-0AB0
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Opis
Additional Information
- Part Number
- 6ES7517-3AP00-0AB0
- UPC
- 887621837525
- Tariff Code
- 8537109160
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : PLC CPU-module
- Class Code : EC000236
- Version : 7
Specifications
- Country of Origin
- DE
- Depth
- 129 mm
- Width
- 175 mm
- Height
- 147 mm
- Model
- Modular
- With display
- true
- Type of memory
- Other
- System accessory
- true
- Memory size
- 10000 kByte
- Supply voltage DC
- 19.2 V
- Number of relay outputs
- 0
- Number of digital inputs
- 0
- Number of analogue inputs
- 0
- Number of digital outputs
- 0
- Rail mounting possible
- true
- Number of analogue outputs
- 0
- Number of HW-interfaces USB
- 0
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 2
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 1
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Supporting protocol for MODBUS
- true
- Supporting protocol for TCP/IP
- true
- Supporting protocol for PROFIBUS
- true
- Explosion safety category for dust
- None
- Supporting protocol for PROFINET IO
- true
- Number of HW-interfaces industrial Ethernet
- 2
- Processing time (1K, binary operation)
- 0.002 ms
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
Modele CAD
Dodatkowe informacje

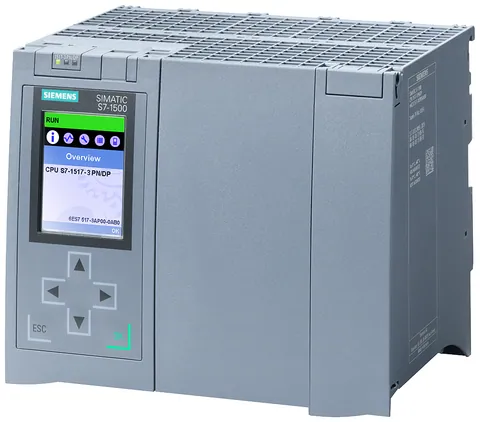

The Siemens 6ES75173AP000AB0 is a powerful and reliable industrial automation unit. This device is part of the SIMATIC S7-1500 series of automation systems, which is well-known for its reliable performance, advanced features, and scalability. This particular unit is integrated with a variety of interfaces and communication ports that allow it to communicate with other devices, ensuring seamless integration with the industrial automation system.
The 6ES75173AP000AB0 is designed to provide high-performance control, monitoring, and communication capabilities. It is equipped with an 8-bit microcontroller and a high-speed communication interface, allowing for fast and reliable data transmission. Additionally, the unit is equipped with a wide range of features, including an integrated web server, Ethernet ports, and a real-time clock. This ensures that the system is able to quickly and accurately monitor and control any connected devices or systems.
The 6ES75173AP000AB0 also features an integrated safety system that provides protection against unauthorized access. It also allows for easy integration with other systems and devices, allowing for increased flexibility and scalability. It is also designed with energy-efficient components, making it an ideal choice for industrial applications. With its advanced features, reliable performance, and scalability, the 6ES75173AP000AB0 from Siemens is the perfect choice for any industrial automation system.
