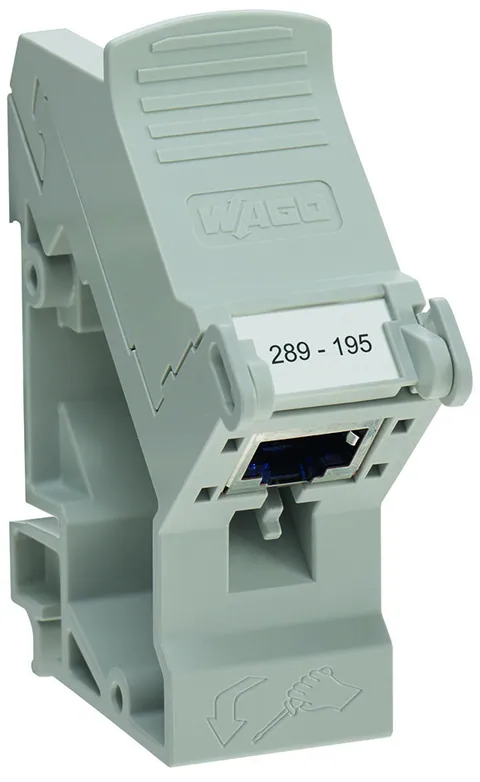

Wago
289-195
Interface module; RJ-45; IDC technology; Cat. 6; in mounting carrier; with shield connection
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
€29.00
1
Metody płatności:
Łącznie 160 części w magazynie od 15 dostawców
Stan produktu:
Oferta z czasem realizacji przez producenta
Wysyłka:Na zapytanie
Najlepsza cena:
€23.99
Additional Information
- Part Number
- 289-195
- UPC
- 4055143292986
- Tariff Code
- 85366990990
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Interface module
- Class Code : EC002780
- Version : 7
Safety And Protection
- Protection type
- IP20
Environmental Requirements
- Ambient temperature (operation)
- -10 … +60 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Relative humidity
- ≤ 95% (non-condensing)
Electrical Data
- Specialty functions
- With shield connection
Physical Data
- Width
- 26.8 mm / 1.056 inches
- Height
- 81.4 mm / 3.205 inches
- Depth from upper-edge of DIN-rail
- 64.4 mm / 2.535 inches
Material Data
- Contact material (connector)
- Au over Ni
- Fire load
- 0.000 MJ
- Weight
- 51.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
- Housing design
- Mounting carrier
- Mating cycles
- 750
Connection 2
- Pole number 2
- 8
- Connection type 2
- System
- Connection technology 2
- IDC connection
- Solid conductor 2
- 0.2 … 0.32 mm² / 24 … 22 AWG
- Stranded conductor 2
- 0.2 … 0.32 mm² / 26/7 … 22/7 AWG
- Strip length 2
- 0.8 … 1.6 mm / 0.03 … 0.06 inches
Specifications
- Product Group Code
- 0006
Commercial Data
- Packaging type
- Box
- Country of origin
- CH
- GTIN
- 4055143292986
- Customs tariff number
- 85366990990
Connection 1
- Connector
- RJ-45 (shielded)
- Pole number 1
- 8
- Connection type 1
- System
- Connection type
- RJ-45
