Weidmuller 1780220000

The SL-SMT 5.08HC/06/90G 3.2SN BK BX is a PCB plug-in connector characterized by its closed side and 5.08 mm pitch, suitable for THT/THR solder connections. This model supports a configuration of 6 poles, with each solder pin measuring 3.2 mm in length and designed to facilitate a 90° outgoing elbow.

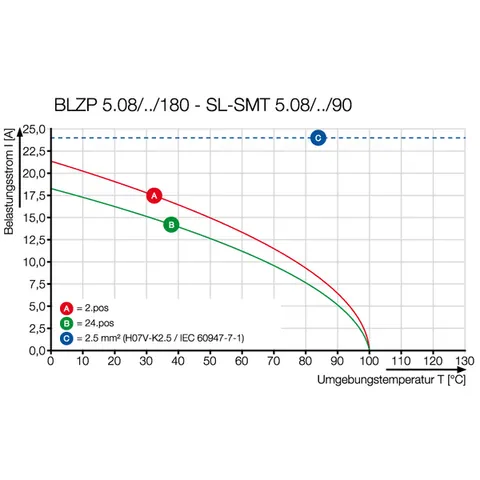

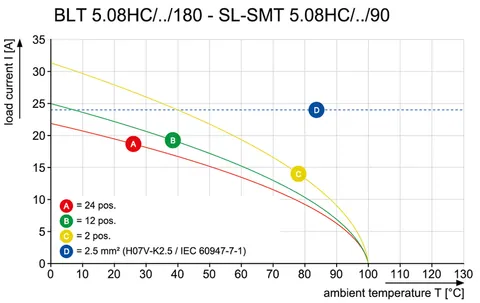

Constructed from LCP GF insulating material and featuring a black color similar to RAL 9011, this connector is engineered for a wide operating temperature range of -50°C to 100°C. It meets stringent insulation strength requirements, with a comparative tracking index (CTI) of ≥ 175 and a UL 94 flammability rating of V-0. Additionally, the connector has a rated voltage of 300 V and supports a rated current of up to 18.5 A, depending on the use group, ensuring reliable performance in various applications.

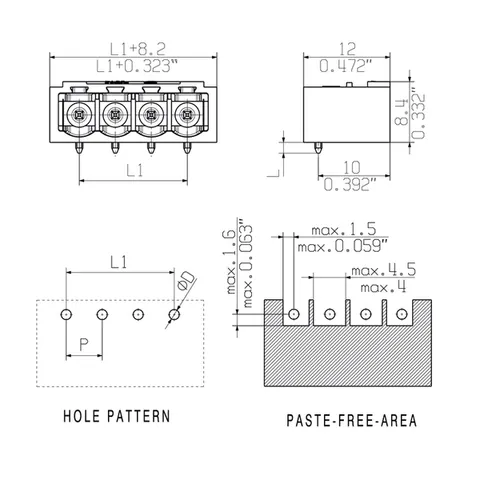

With a net weight of 3.12 g and compact dimensions of 33.68 mm in width, 11.6 mm in height, and 12 mm in depth, the connector is designed for efficient space utilization on PCBs. It comes packaged in a box with dimensions of 42 mm in length, 69 mm in width, and 165 mm in height, making it suitable for organized storage and transport.

This product is part of the OMNIMATE Signal series and is compliant with several international standards, including IEC 60664-1 and IEC 61984, ensuring its reliability across diverse electronic applications. The approval certifications include CSA, EAC, and UR, with details available in the respective approval certificates.
