Weidmuller 1876900000

This PCB plug-in connector features a male header configuration with a 270° outgoing elbow, designed for THT/THR solder connections. With a pitch of 5.08 mm and a total of 7 poles, each pole is equipped with a single solder pin measuring 3.2 mm in length. The connector is constructed from durable LCP GF insulating material and is finished in black.

It meets rigorous standards, having received approval from CSA, EAC, and UR, with a UL File Number of E60693. The rated voltage for this component is 300 V across both use groups B and D, while the rated current for use group B is 18.5 A and for use group D is 10 A. Approval specifications indicate that these are maximum values; further details can be referenced in the approval certificate.

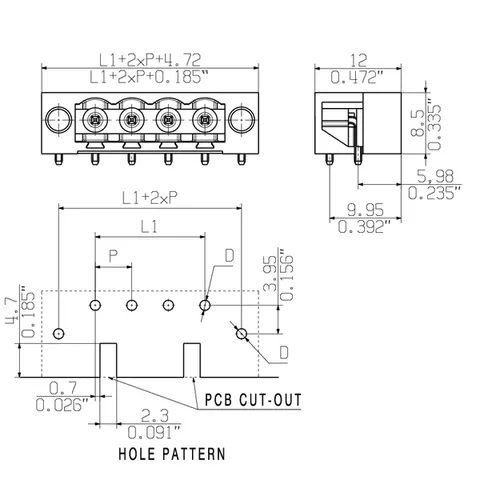

Dimensionally, the connector measures 45.36 mm in width, 11.7 mm in height, and 12 mm in depth, with a net weight of 4.258 g. It is designed to operate within a temperature range of -50 °C to 100 °C, with a maximum relative humidity of 80% during storage. The connector's construction ensures a Comparative Tracking Index (CTI) of ≥ 175 and an insulation strength of ≥ 108 Ω, complying with multiple international standards.

For easy installation, it can be mounted onto PCBs using a THT/THR solder connection method. Additionally, it can withstand up to 25 plugging cycles, with a maximum plugging force of 9 N per pole and a pulling force of 7 N per pole. The product family is categorized under OMNIMATE Signal - series BL/SL 5.08.
